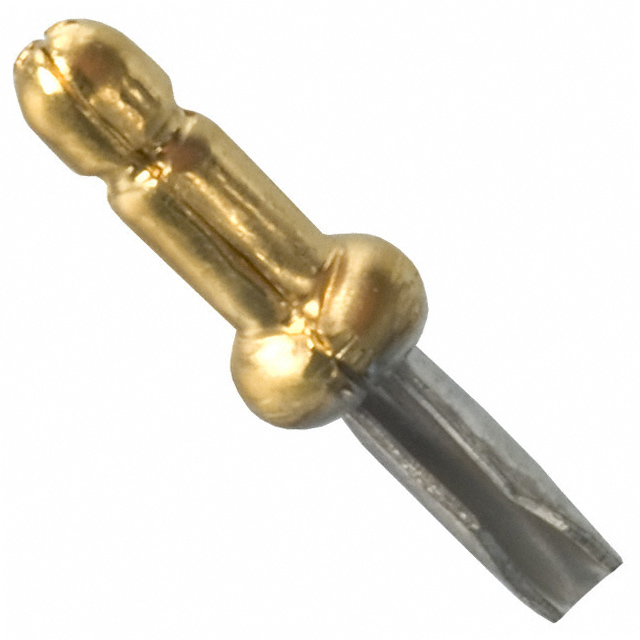

TE Connectivity AMP Connectors 60803-1
Images are for reference only
Manufacturer
Manufacturer No
60803-1
Packaging
Bulk
Description
CONN PC PIN CIRC 0.058DIA GOLD
Detailed Description
Single Post Terminal Connector Through Hole Gold 0.058" (1.47mm) Dia
Datasheet
Payment
Delivery
Series
-
Packaging
Bulk
Insulation
Non-Insulated
Termination
Press-Fit
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole
Terminal Type
Single Post
Contact Finish
Gold
Terminal Style
Flanged
Board Thickness
0.062" ~ 0.093" (1.57mm ~ 2.36mm)
Flange Diameter
0.090" (2.29mm)
Contact Material
Phosphor Bronze
Insulation Color
-
Length - Overall
0.375" (9.53mm)
Base Product Number
60803
Length - Above Flange
0.160" (4.06mm)
Length - Below Flange
0.150" (3.81mm)
Material - Insulation
-
Mounting Hole Diameter
0.046" ~ 0.050" (1.17mm ~ 1.27mm)
Pin Size - Above Flange
0.058" (1.47mm) Dia
Pin Size - Below Flange
-
Contact Finish Thickness
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Series | - |
| Packaging | Bulk |
| Insulation | Non-Insulated |
| Termination | Press-Fit |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole |
| Terminal Type | Single Post |
| Contact Finish | Gold |
| Terminal Style | Flanged |
| Board Thickness | 0.062" ~ 0.093" (1.57mm ~ 2.36mm) |
| Flange Diameter | 0.090" (2.29mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | - |
| Length - Overall | 0.375" (9.53mm) |
| Base Product Number | 60803 |
| Length - Above Flange | 0.160" (4.06mm) |
| Length - Below Flange | 0.150" (3.81mm) |
| Material - Insulation | - |
| Mounting Hole Diameter | 0.046" ~ 0.050" (1.17mm ~ 1.27mm) |
| Pin Size - Above Flange | 0.058" (1.47mm) Dia |
| Pin Size - Below Flange | - |
| Contact Finish Thickness | 30.0µin (0.76µm) |
