Step1: Product

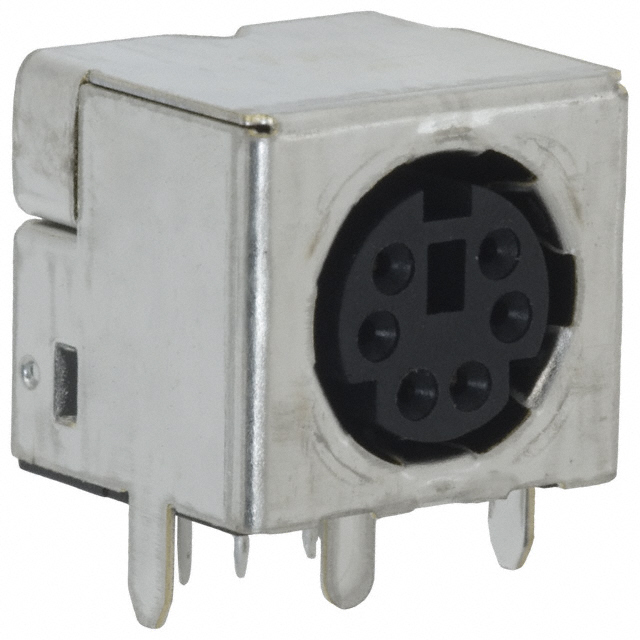

TE Connectivity AMP Connectors 5749265-1
Images are for reference only
Manufacturer
Manufacturer No
5749265-1
Quantity
4
Availability
In Stock
Packaging
Tube
Description
CONN RCPT FMALE MINI DIN 6P SLDR
Detailed Description
6 Position Circular Connector Receptacle, Female Sockets Solder
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Color
-
Series
-
Features
-
Packaging
Tube
Shielding
Shielded
Orientation
Keyed
Termination
Solder
Applications
Audio, Video
Shell Finish
-
Cable Opening
-
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Fastening Type
Push-Pull
Shell Material
Thermoplastic
Voltage Rating
30VDC
Insert Material
-
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Plastic
Ingress Protection
-
Base Product Number
5749265
Number of Positions
6
Shell Size - Insert
Mini DIN
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | - |
| Series | - |
| Features | - |
| Packaging | Tube |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Audio, Video |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Thermoplastic |
| Voltage Rating | 30VDC |
| Insert Material | - |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Plastic |
| Ingress Protection | - |
| Base Product Number | 5749265 |
| Number of Positions | 6 |
| Shell Size - Insert | Mini DIN |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | Flash |
