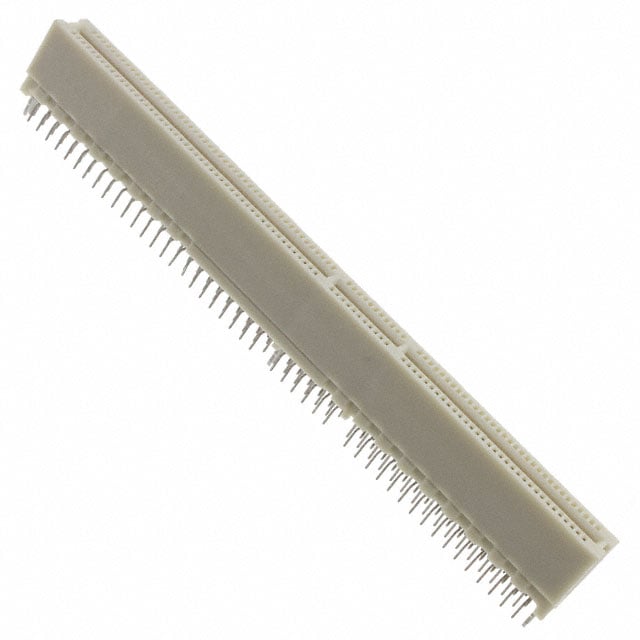

TE Connectivity AMP Connectors 5145169-8
Images are for reference only
Manufacturer
Manufacturer No
5145169-8
Availability
In Stock
Packaging
Bulk
Description
CONN PCI CARDEDGE FML 184P 0.050
Detailed Description
184 Position Female Connector PCI 5V 64 Bit Gold 0.050" (1.27mm) Natural
Datasheet
Payment
Delivery
Color
Natural
Pitch
0.050" (1.27mm)
Gender
Female
Series
Standard Edge .050
Features
Board Lock
Read Out
Dual
Card Type
PCI 5V 64 Bit
Packaging
Bulk
Termination
Solder, Staggered
Contact Type
-
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole
Card Thickness
0.062" (1.57mm)
Contact Finish
Gold
Flange Feature
-
Number of Rows
2
Contact Material
Phosphor Bronze
Base Product Number
5145169
Number of Positions
184
Material - Insulation
Thermoplastic
Operating Temperature
-
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions/Bay/Row
49; 11; 32
| Attribute | Value |
|---|---|
| Color | Natural |
| Pitch | 0.050" (1.27mm) |
| Gender | Female |
| Series | Standard Edge .050 |
| Features | Board Lock |
| Read Out | Dual |
| Card Type | PCI 5V 64 Bit |
| Packaging | Bulk |
| Termination | Solder, Staggered |
| Contact Type | - |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole |
| Card Thickness | 0.062" (1.57mm) |
| Contact Finish | Gold |
| Flange Feature | - |
| Number of Rows | 2 |
| Contact Material | Phosphor Bronze |
| Base Product Number | 5145169 |
| Number of Positions | 184 |
| Material - Insulation | Thermoplastic |
| Operating Temperature | - |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions/Bay/Row | 49; 11; 32 |
