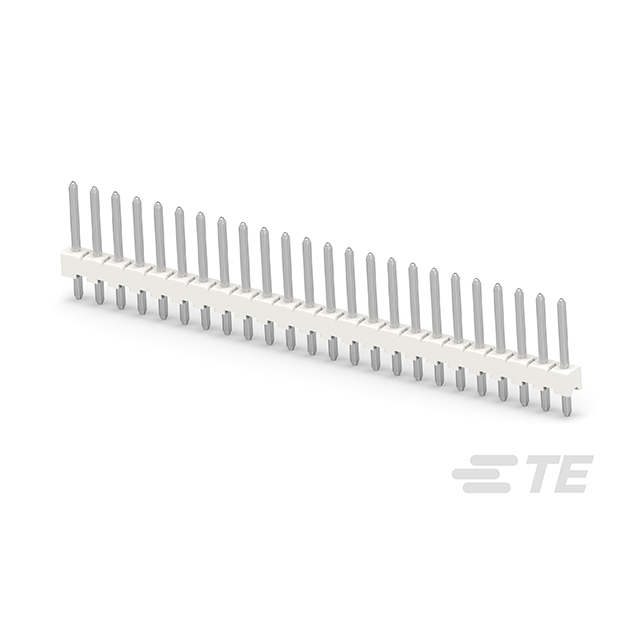

TE Connectivity AMP Connectors 5-644456-4
Images are for reference only
Manufacturer
Manufacturer No
5-644456-4
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 24POS 2.54MM
Detailed Description
Connector Header Through Hole 24 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
MTA-100
Features
-
Packaging
Bulk
Shrouding
Unshrouded
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
-
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250VAC
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.100" (2.54mm)
Ingress Protection
-
Base Product Number
644456
Insulation Material
Thermoplastic
Number of Positions
24
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.110" (2.79mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-55°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
0.505" (12.83mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.295" (7.49mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
150.0µin (3.81µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | MTA-100 |
| Features | - |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | - |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.100" (2.54mm) |
| Ingress Protection | - |
| Base Product Number | 644456 |
| Insulation Material | Thermoplastic |
| Number of Positions | 24 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.110" (2.79mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -55°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | 0.505" (12.83mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.295" (7.49mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
