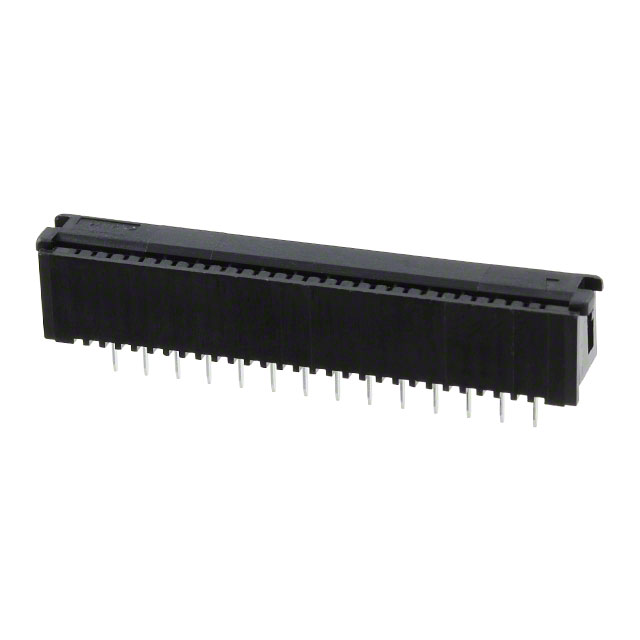

TE Connectivity AMP Connectors 487925-2
Images are for reference only
Manufacturer
Manufacturer No
487925-2
Availability
In Stock
Packaging
Tube
Description
CONN FFC VERT 14POS 2.54MM PCB
Detailed Description
14 Position FFC Connector Contacts, Vertical - 1 Sided 0.100" (2.54mm) Through Hole
Datasheet
Payment
Delivery
Pitch
0.100" (2.54mm)
Series
AMPMODU
Features
Zero Insertion Force (ZIF)
Packaging
Tube
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Housing Color
Black
Mating Cycles
-
Mounting Type
Through Hole
Actuator Color
Black
Cable End Type
Straight
Contact Finish
Tin
Flat Flex Type
FFC
Voltage Rating
-
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Thermoplastic
Actuator Material
Thermoplastic
FFC, FCB Thickness
0.12mm
Height Above Board
0.310" (7.87mm)
Base Product Number
487925
Number of Positions
14
Current Rating (Amps)
-
Operating Temperature
-
Connector/Contact Type
Contacts, Vertical - 1 Sided
Contact Finish Thickness
150.0µin (3.81µm)
Material Flammability Rating
-
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm) |
| Series | AMPMODU |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tube |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Color | Black |
| Mating Cycles | - |
| Mounting Type | Through Hole |
| Actuator Color | Black |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FFC |
| Voltage Rating | - |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| FFC, FCB Thickness | 0.12mm |
| Height Above Board | 0.310" (7.87mm) |
| Base Product Number | 487925 |
| Number of Positions | 14 |
| Current Rating (Amps) | - |
| Operating Temperature | - |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish Thickness | 150.0µin (3.81µm) |
| Material Flammability Rating | - |
