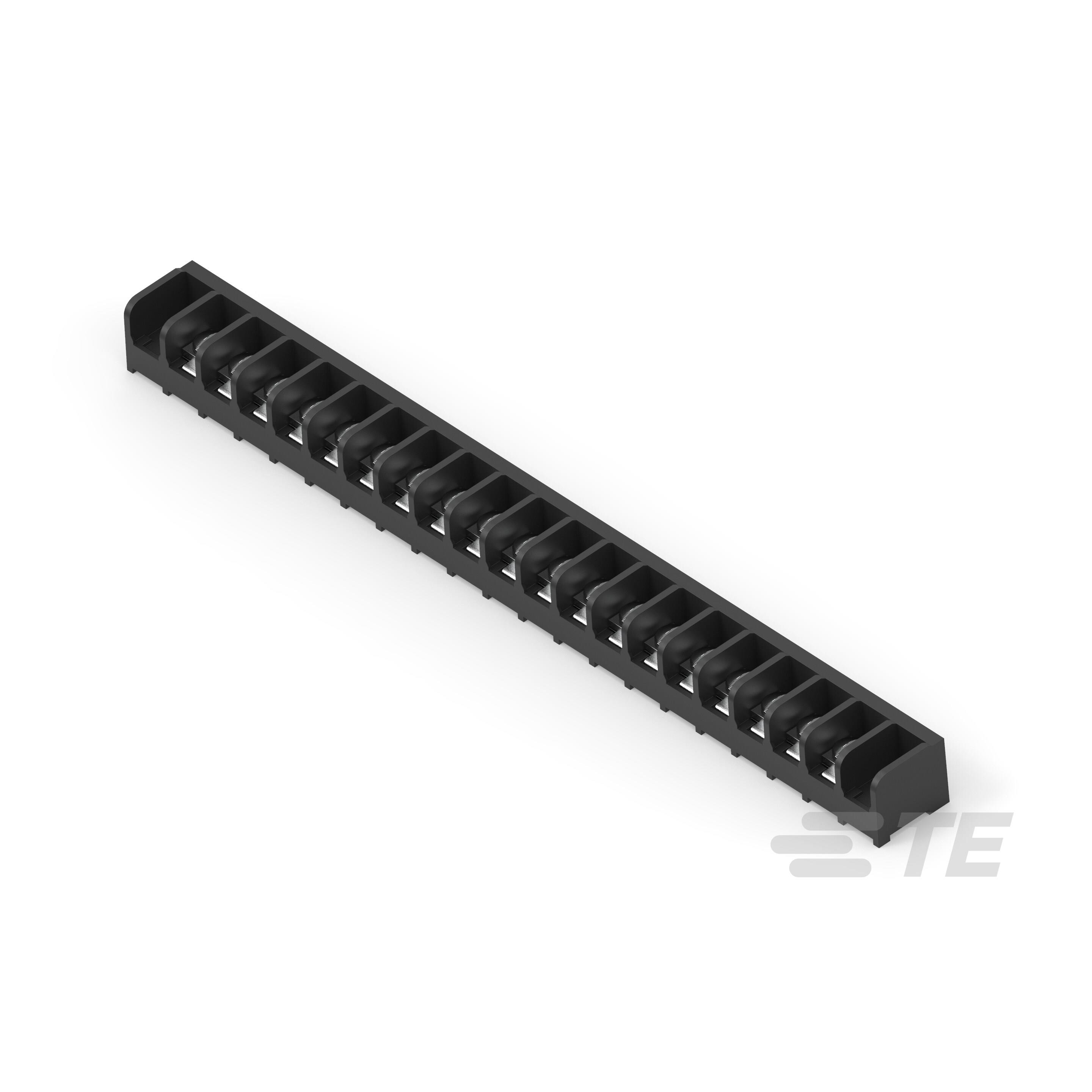

TE Connectivity AMP Connectors 4-1546399-3
Images are for reference only
Manufacturer
Manufacturer No
4-1546399-3
Availability
In Stock
Packaging
Bulk
Description
CONN BARRIER STRP 19CIRC 0.375"
Detailed Description
19 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
Datasheet
Payment
Delivery
Color
Black
Pitch
0.375" (9.53mm)
Series
#6, Buchanan
Features
Flange
Packaging
Bulk
Wire Gauge
12-22 AWG
Barrier Type
3 Wall (Tri)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Chassis, Panel; Through Hole
Number of Rows
1
Voltage Rating
300V
Top Termination
Screws with Captive Plate
Bottom Termination
PC Pin
Number of Circuits
19
Base Product Number
1546399
Terminal Block Type
Barrier Block
Current Rating (Amps)
25A
Material - Insulation
Thermoplastic
Operating Temperature
105°C
Terminal Screw Finish
Zinc, Clear Chromate
Number of Wire Entries
19
Terminal Screw Material
Steel
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.375" (9.53mm) |
| Series | #6, Buchanan |
| Features | Flange |
| Packaging | Bulk |
| Wire Gauge | 12-22 AWG |
| Barrier Type | 3 Wall (Tri) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Chassis, Panel; Through Hole |
| Number of Rows | 1 |
| Voltage Rating | 300V |
| Top Termination | Screws with Captive Plate |
| Bottom Termination | PC Pin |
| Number of Circuits | 19 |
| Base Product Number | 1546399 |
| Terminal Block Type | Barrier Block |
| Current Rating (Amps) | 25A |
| Material - Insulation | Thermoplastic |
| Operating Temperature | 105°C |
| Terminal Screw Finish | Zinc, Clear Chromate |
| Number of Wire Entries | 19 |
| Terminal Screw Material | Steel |
| Material Flammability Rating | UL94 V-0 |
