Step1: Product

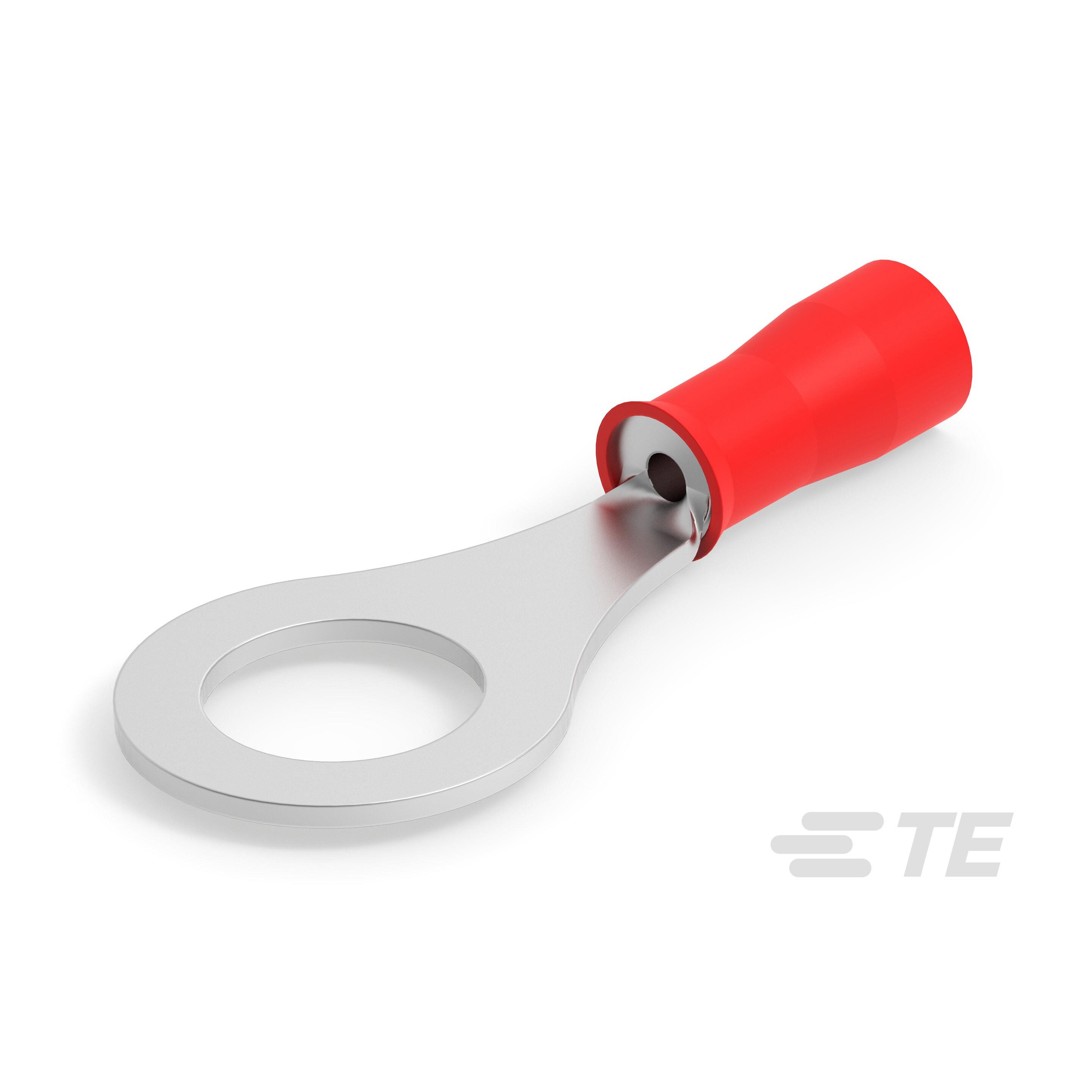

TE Connectivity AMP Connectors 324123
Images are for reference only
Manufacturer
Manufacturer No
324123
Packaging
Bulk
Description
CONN RING CIRC 16-22AWG #5/16
Detailed Description
Ring Terminal Connector 5/16 Stud Circular 16-22 AWG Crimp
Datasheet
Payment
Delivery
Color
Red
Series
PIDG
Features
Serrated Termination
Packaging
Bulk
Thickness
0.031" (0.79mm)
Insulation
Insulated
Wire Gauge
16-22 AWG
Termination
Crimp
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
5/16 Stud
Terminal Type
Circular
Contact Finish
Tin
Contact Material
Copper
Length - Overall
1.218" (30.94mm)
Base Product Number
3241
Insulation Diameter
0.080" ~ 0.125" (2.03mm ~ 3.18mm)
Width - Outer Edges
0.531" (13.49mm)
Material - Insulation
Polyamide (PA), Nylon
| Attribute | Value |
|---|---|
| Color | Red |
| Series | PIDG |
| Features | Serrated Termination |
| Packaging | Bulk |
| Thickness | 0.031" (0.79mm) |
| Insulation | Insulated |
| Wire Gauge | 16-22 AWG |
| Termination | Crimp |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 5/16 Stud |
| Terminal Type | Circular |
| Contact Finish | Tin |
| Contact Material | Copper |
| Length - Overall | 1.218" (30.94mm) |
| Base Product Number | 3241 |
| Insulation Diameter | 0.080" ~ 0.125" (2.03mm ~ 3.18mm) |
| Width - Outer Edges | 0.531" (13.49mm) |
| Material - Insulation | Polyamide (PA), Nylon |
