Step1: Product

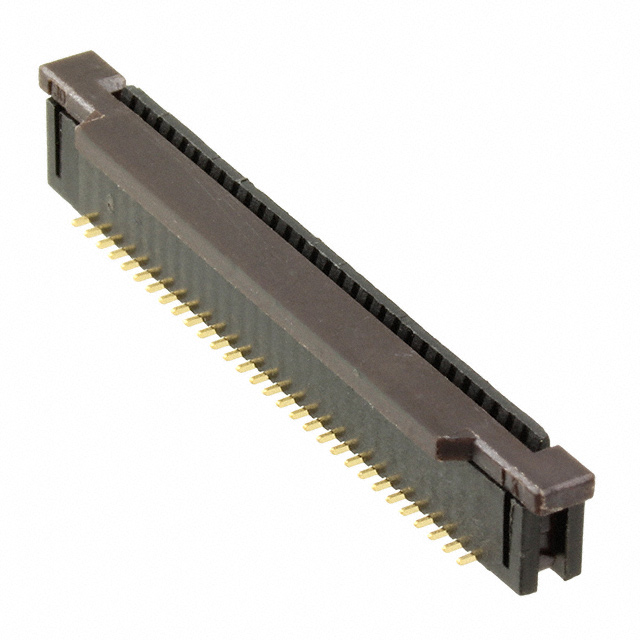

TE Connectivity AMP Connectors 3-1734248-0
Images are for reference only
Manufacturer
Manufacturer No
3-1734248-0
Quantity
5
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC VERT 30POS 1MM SMD
Detailed Description
30 Position FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Datasheet
Payment
Delivery
Pitch
0.039" (1.00mm)
Series
-
Features
Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Housing Color
Black
Mating Cycles
20
Mounting Type
Surface Mount
Actuator Color
Black
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
125V
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA9T), Nylon 9T
Actuator Material
Polyamide (PA9T), Nylon 9T
FFC, FCB Thickness
0.30mm
Height Above Board
0.217" (5.50mm)
Base Product Number
1734248
Number of Positions
30
Current Rating (Amps)
1A
Operating Temperature
-20°C ~ 85°C
Connector/Contact Type
Contacts, Vertical - 1 Sided
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | - |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Color | Black |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Actuator Color | Black |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 125V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA9T), Nylon 9T |
| Actuator Material | Polyamide (PA9T), Nylon 9T |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.217" (5.50mm) |
| Base Product Number | 1734248 |
| Number of Positions | 30 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -20°C ~ 85°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
