Step1: Product

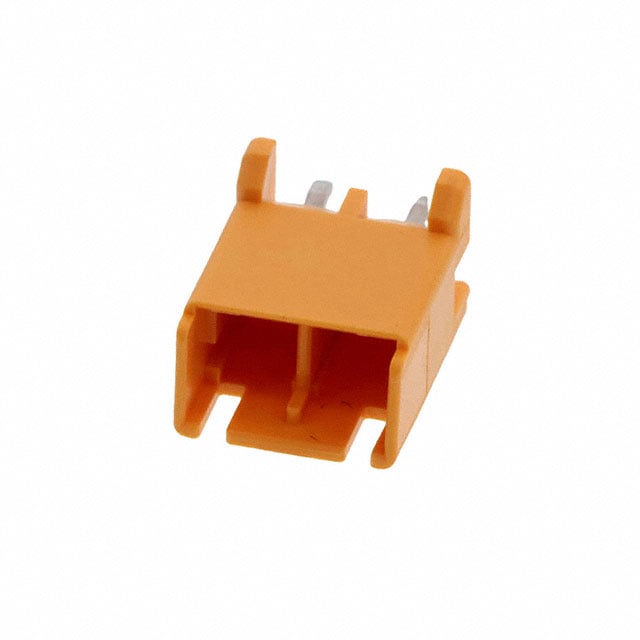

TE Connectivity AMP Connectors 3-1376382-4
Images are for reference only
Manufacturer
Manufacturer No
3-1376382-4
Quantity
146
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 2POS 5MM
Detailed Description
Connector Header Through Hole 2 position 0.197" (5.00mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Power Key
Features
Board Guide
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Kinked Pin, Solder
Applications
General Purpose
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.197" (5.00mm)
Voltage Rating
300VAC
Contact Material
Copper Alloy
Insulation Color
Yellow
Insulation Height
0.555" (14.10mm)
Ingress Protection
-
Base Product Number
1376382
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Positions
2
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.138" (3.50mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
19.4mm
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Power Key |
| Features | Board Guide |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.197" (5.00mm) |
| Voltage Rating | 300VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Yellow |
| Insulation Height | 0.555" (14.10mm) |
| Ingress Protection | - |
| Base Product Number | 1376382 |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Positions | 2 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.138" (3.50mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 19.4mm |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
