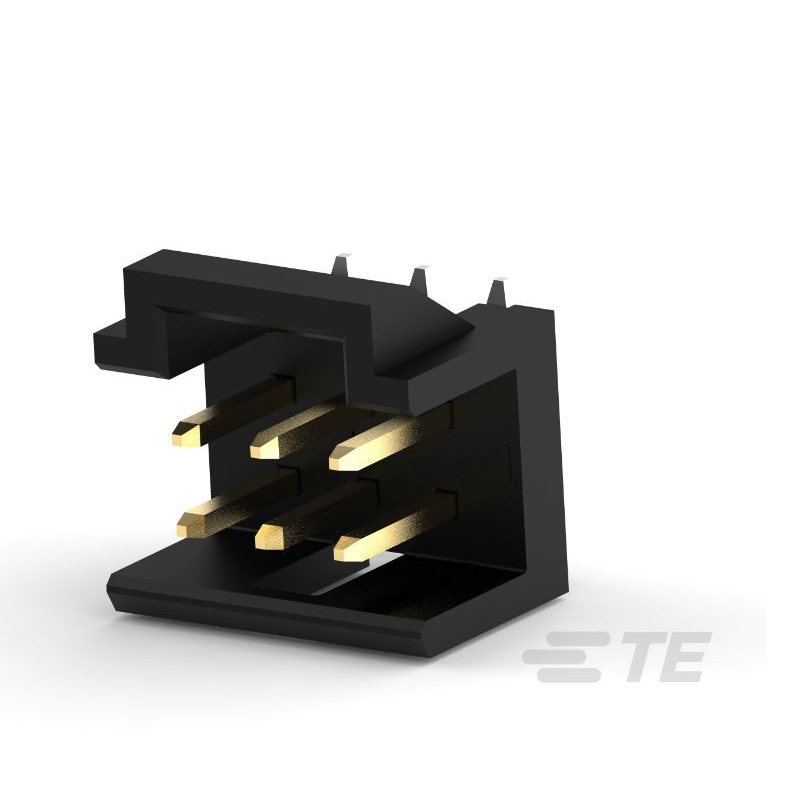

TE Connectivity AMP Connectors 2823244-8
Images are for reference only
Manufacturer
Manufacturer No
2823244-8
Packaging
Bulk
Description
8P,2MM,PL HDR,DRVT,SMD,0.76AU,TR
Detailed Description
Connector Header Surface Mount 8 position 0.079" (2.00mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
AMPMODU 2MM
Features
Pick and Place
Packaging
Bulk
Shrouding
Shrouded - 2 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
125VAC/DC
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.217" (5.51mm)
Ingress Protection
-
Base Product Number
2823244
Insulation Material
Thermoplastic
Number of Positions
8
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
0.157" (4.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
157.5µin (4.00µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | AMPMODU 2MM |
| Features | Pick and Place |
| Packaging | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 125VAC/DC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.217" (5.51mm) |
| Ingress Protection | - |
| Base Product Number | 2823244 |
| Insulation Material | Thermoplastic |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.157" (4.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
