Step1: Product

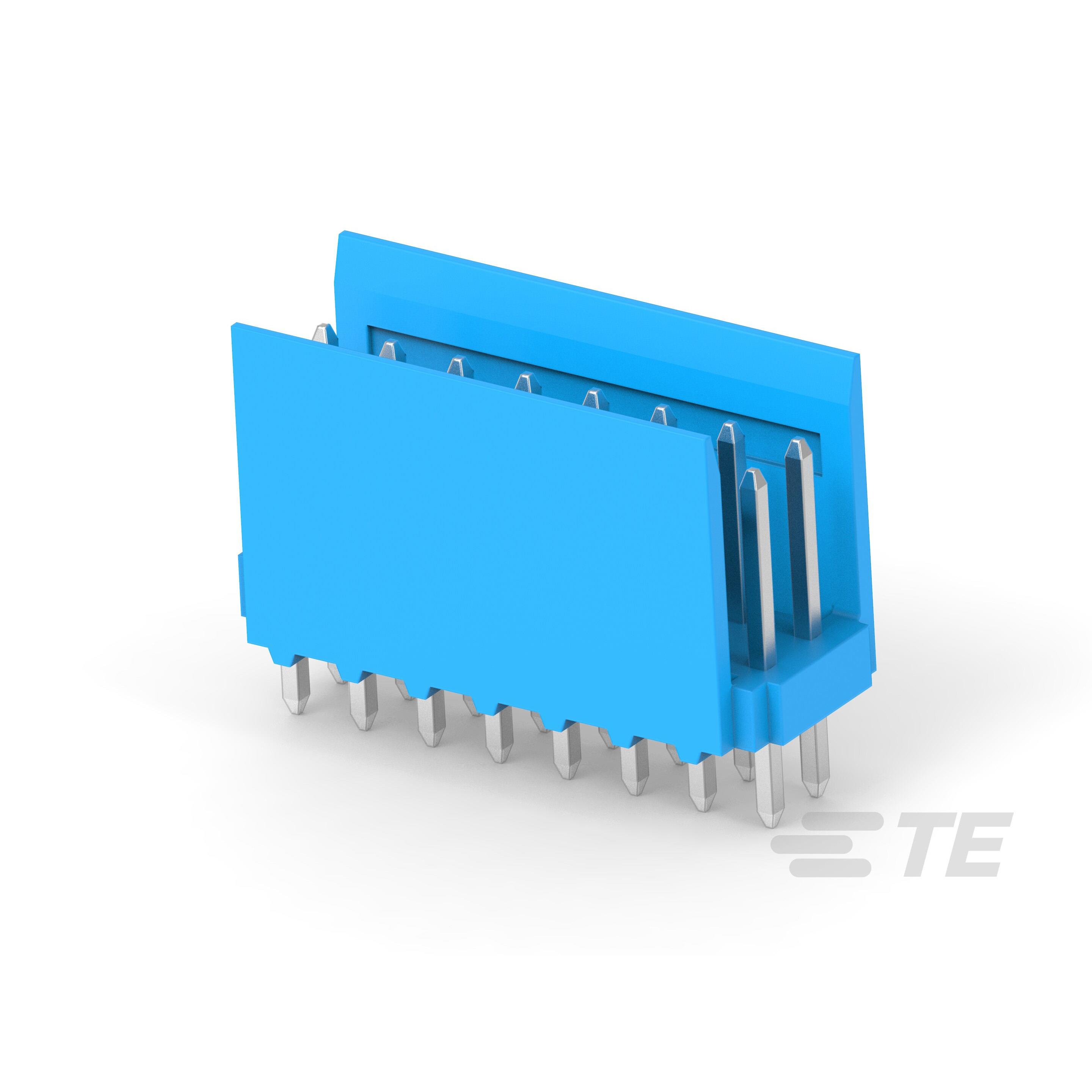

TE Connectivity AMP Connectors 281739-8
Images are for reference only
Manufacturer
Manufacturer No
281739-8
Quantity
36
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 16POS 2.54MM
Detailed Description
Connector Header Through Hole 16 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
HE13/HE14
Features
-
Packaging
Bulk
Shrouding
Shrouded - 2 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Friction Lock
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
Phosphor Bronze
Insulation Color
Blue
Insulation Height
0.449" (11.40mm)
Ingress Protection
-
Base Product Number
281739
Insulation Material
Thermoplastic
Number of Positions
16
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.114" (2.90mm)
Current Rating (Amps)
-
Operating Temperature
-40°C ~ 100°C
Mated Stacking Heights
-
Overall Contact Length
0.492" (12.50mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.276" (7.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | HE13/HE14 |
| Features | - |
| Packaging | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Friction Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Phosphor Bronze |
| Insulation Color | Blue |
| Insulation Height | 0.449" (11.40mm) |
| Ingress Protection | - |
| Base Product Number | 281739 |
| Insulation Material | Thermoplastic |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.114" (2.90mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -40°C ~ 100°C |
| Mated Stacking Heights | - |
| Overall Contact Length | 0.492" (12.50mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.276" (7.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
