Step1: Product

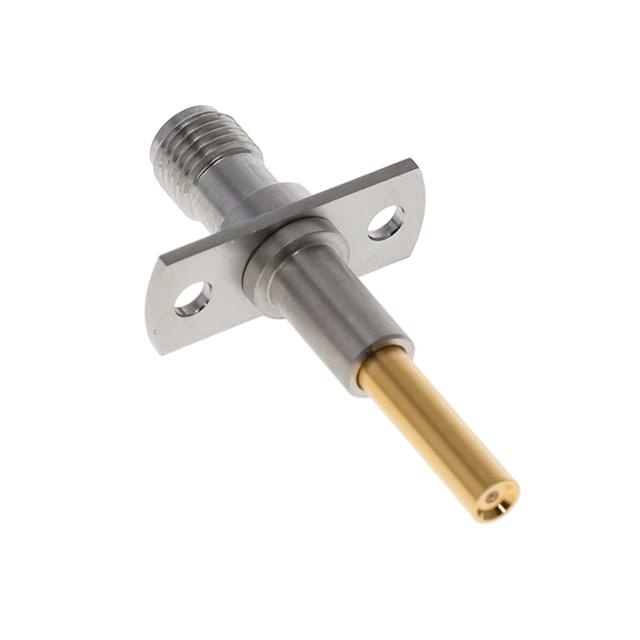

TE Connectivity AMP Connectors 2408014-1
Images are for reference only
Manufacturer
Manufacturer No
2408014-1
Availability
In Stock
Packaging
Bag
Description
COAX ADAPT SMA TO COAX SWITCH
Detailed Description
Adapter Coaxial Connector SMA Jack, Female Socket To Coaxial Switch Plug, Male Pin 50 Ohms
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Straight
Series
Blind-Mate Coaxial
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
-
Adapter Type
Plug to Jack
Body Material
Stainless Steel
Center Gender
Female to Male
Mating Cycles
500
Mounting Type
Panel Mount
Adapter Series
SMA to Coaxial Switch
Fastening Type
Push-Pull, Threaded
Insertion Loss
-
Conversion Type
Between Series
Frequency - Max
6 GHz
Mounting Feature
Flange
Ingress Protection
-
Base Product Number
2408014
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
Coaxial Switch Plug, Male Pin
Convert From (Adapter End)
SMA Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Straight |
| Series | Blind-Mate Coaxial |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | - |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Gender | Female to Male |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Adapter Series | SMA to Coaxial Switch |
| Fastening Type | Push-Pull, Threaded |
| Insertion Loss | - |
| Conversion Type | Between Series |
| Frequency - Max | 6 GHz |
| Mounting Feature | Flange |
| Ingress Protection | - |
| Base Product Number | 2408014 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | Coaxial Switch Plug, Male Pin |
| Convert From (Adapter End) | SMA Jack, Female Socket |
