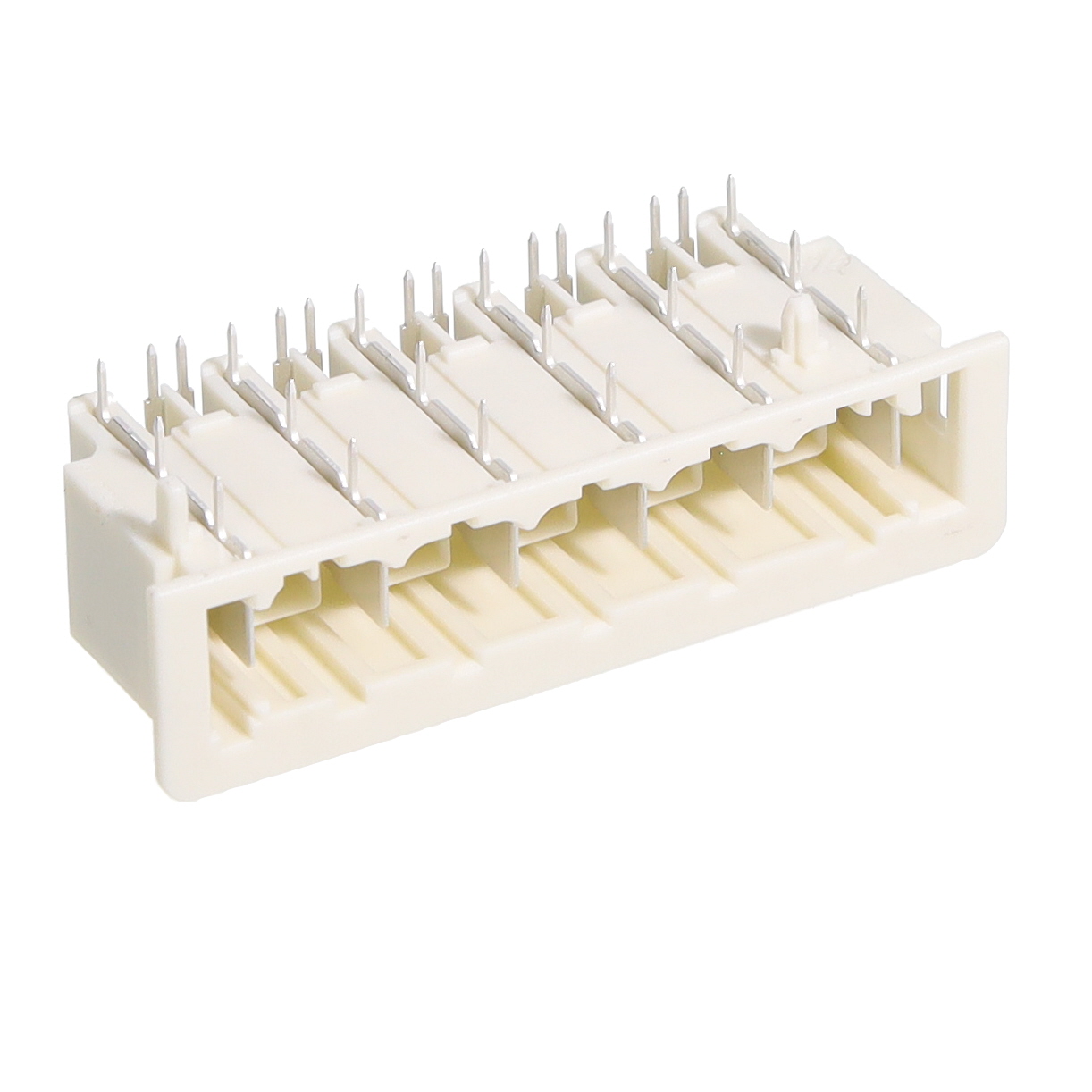

TE Connectivity AMP Connectors 2305390-2
Images are for reference only
Manufacturer
Manufacturer No
2305390-2
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
5-PORT MATENET HDR ASSY 90DEG, C
Detailed Description
Connector Header Through Hole, Right Angle 10 position
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
MATEnet
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
-
Voltage Rating
60VDC
Contact Material
Copper Alloy
Insulation Color
White
Insulation Height
0.531" (13.50mm)
Ingress Protection
-
Base Product Number
2305390
Insulation Material
Polyamide (PA4T), Nylon 4T, Glass Filled
Number of Positions
10
Row Spacing - Mating
-
Contact Finish - Post
-
Contact Length - Post
0.094" (2.40mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | MATEnet |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | - |
| Voltage Rating | 60VDC |
| Contact Material | Copper Alloy |
| Insulation Color | White |
| Insulation Height | 0.531" (13.50mm) |
| Ingress Protection | - |
| Base Product Number | 2305390 |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled |
| Number of Positions | 10 |
| Row Spacing - Mating | - |
| Contact Finish - Post | - |
| Contact Length - Post | 0.094" (2.40mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
