TE Connectivity AMP Connectors 2301846-1
Images are for reference only
Manufacturer
Manufacturer No
2301846-1
Quantity
37
Availability
In Stock
Packaging
Tray
Description

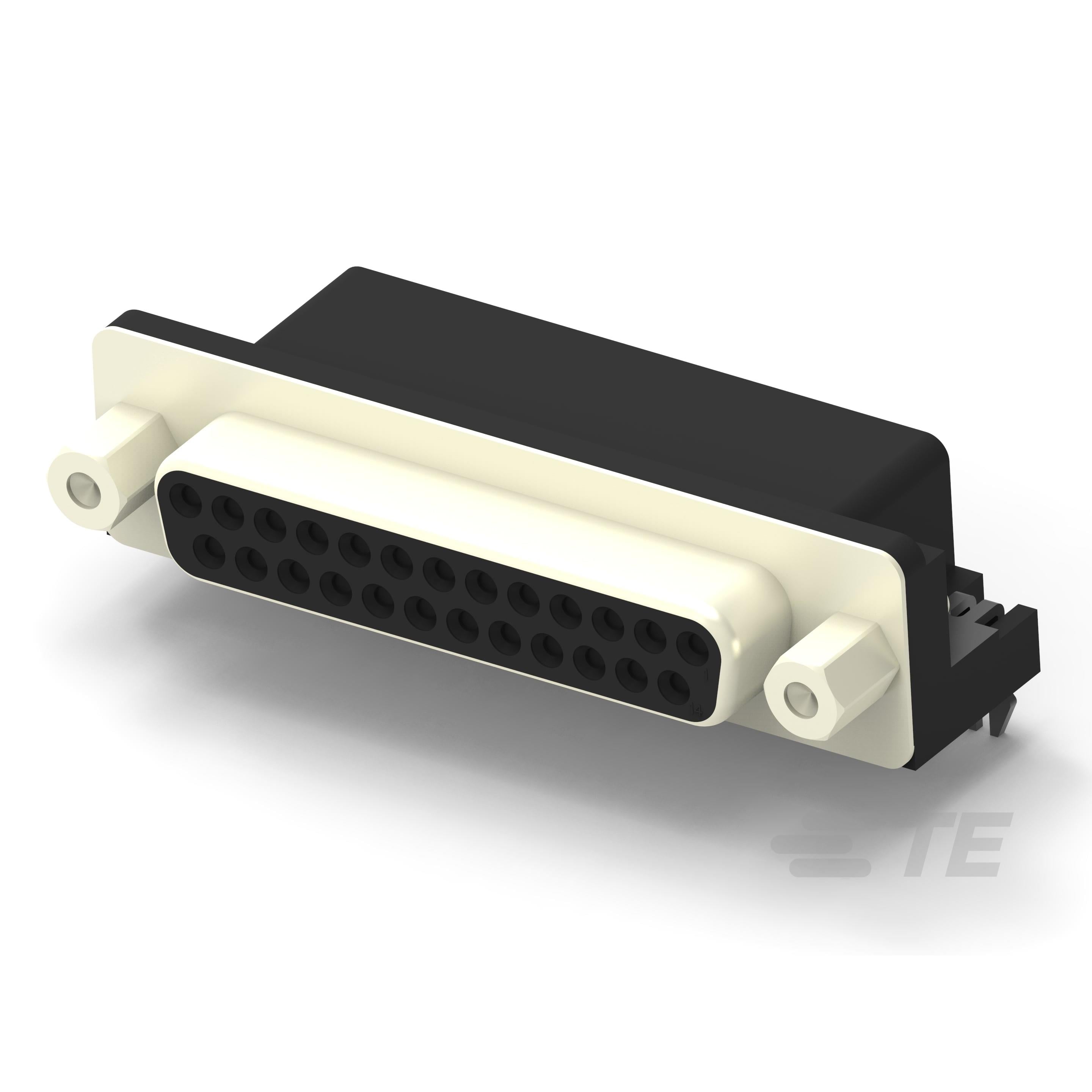

CONN D-SUB RCPT 25POS R/A SOLDER
Detailed Description
25 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Color
Black
Series
AMPLIMITE HD-20
Features
Board Lock
Packaging
Tray
Wire Gauge
-
Termination
Solder
Contact Form
-
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (4-40)
Number of Rows
2
Voltage Rating
-
Backset Spacing
0.411" (10.43mm)
Connector Style
D-Sub
Contact Material
Phosphor Bronze
Primary Material
Metal
Ingress Protection
-
Base Product Number
2301846
Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
25
Current Rating (Amps)
2A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Nickel Plated
Contact Finish Thickness
15.0µin (0.38µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
3 (DB, B)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | Black |
| Series | AMPLIMITE HD-20 |
| Features | Board Lock |
| Packaging | Tray |
| Wire Gauge | - |
| Termination | Solder |
| Contact Form | - |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 2 |
| Voltage Rating | - |
| Backset Spacing | 0.411" (10.43mm) |
| Connector Style | D-Sub |
| Contact Material | Phosphor Bronze |
| Primary Material | Metal |
| Ingress Protection | - |
| Base Product Number | 2301846 |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 25 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 3 (DB, B) |
