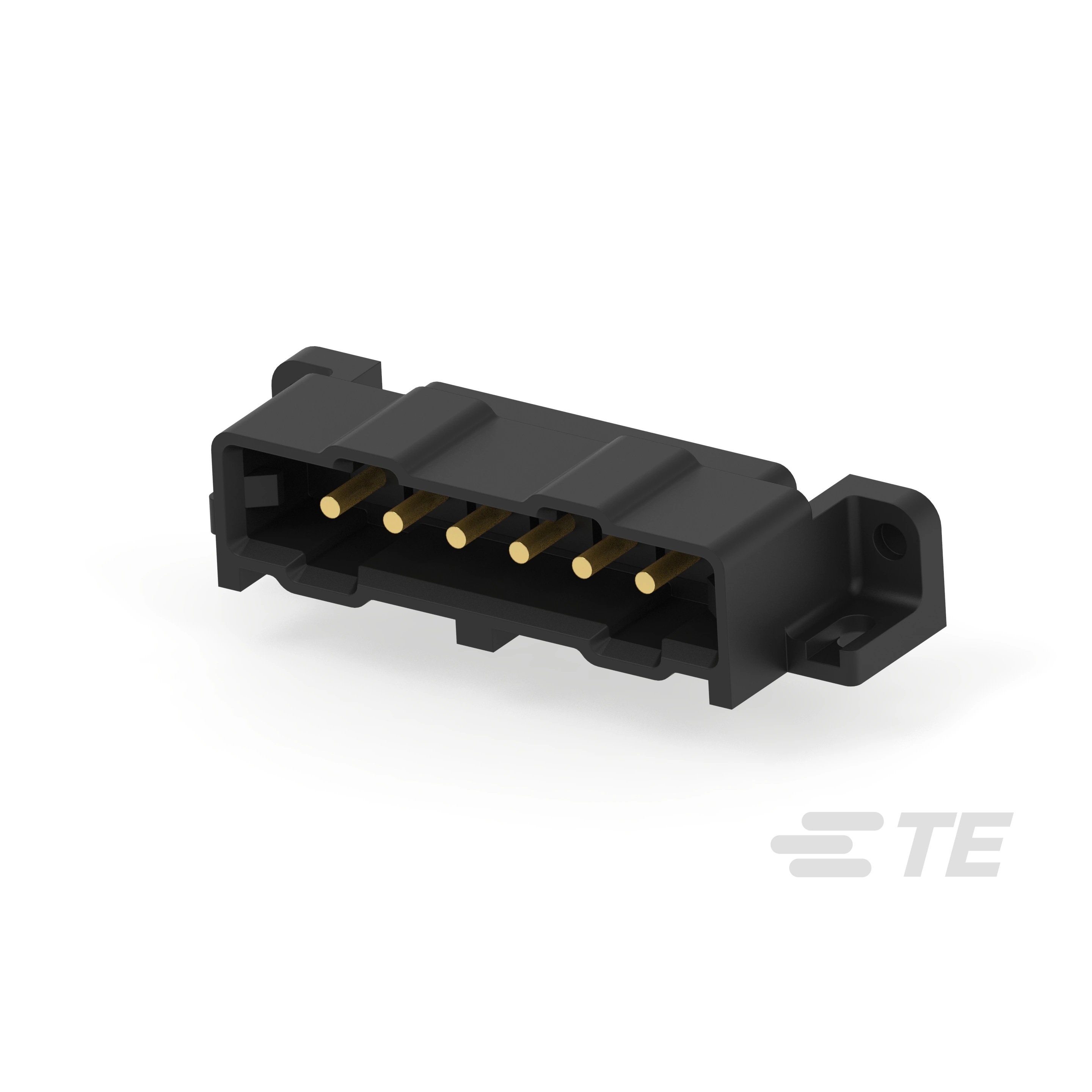

TE Connectivity AMP Connectors 207378-7
Images are for reference only
Manufacturer
Manufacturer No
207378-7
Packaging
Tube
Description
CONN HEADER R/A 6POS 5MM
Detailed Description
Connector Header Through Hole, Right Angle 6 position 0.197" (5.00mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
Metrimate
Features
Mounting Flange
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.197" (5.00mm)
Voltage Rating
600V
Contact Material
Brass
Insulation Color
Red
Insulation Height
0.500" (12.70mm)
Ingress Protection
-
Base Product Number
207378
Insulation Material
Polyamide (PA), Nylon
Number of Positions
6
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
0.192" (4.88mm)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 130°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | Metrimate |
| Features | Mounting Flange |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.197" (5.00mm) |
| Voltage Rating | 600V |
| Contact Material | Brass |
| Insulation Color | Red |
| Insulation Height | 0.500" (12.70mm) |
| Ingress Protection | - |
| Base Product Number | 207378 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 6 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.192" (4.88mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 130°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
