Step1: Product

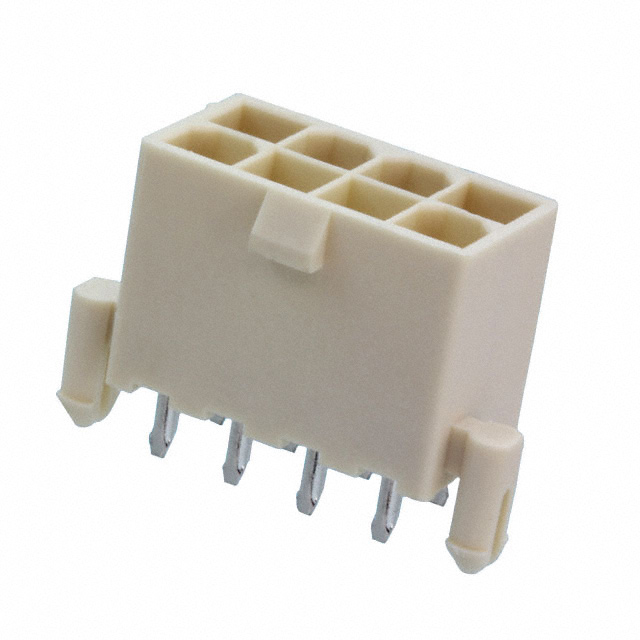

TE Connectivity AMP Connectors 2029265-8
Images are for reference only
Manufacturer
Manufacturer No
2029265-8
Availability
In Stock
Packaging
Tray
Description
CONN HEADER VERT 8POS 4.2MM
Detailed Description
Connector Header Through Hole 8 position 0.165" (4.20mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
VAL-U-LOK
Features
Board Lock, Glow Wire Compliant
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose, Industrial, Lighting
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.165" (4.20mm)
Voltage Rating
600VAC
Contact Material
Brass
Insulation Color
White
Insulation Height
0.504" (12.80mm)
Ingress Protection
-
Base Product Number
2029265
Insulation Material
Polyamide (PA), Nylon
Number of Positions
8
Row Spacing - Mating
0.165" (4.20mm)
Contact Finish - Post
Tin
Contact Length - Post
0.138" (3.50mm)
Current Rating (Amps)
9A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | VAL-U-LOK |
| Features | Board Lock, Glow Wire Compliant |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.165" (4.20mm) |
| Voltage Rating | 600VAC |
| Contact Material | Brass |
| Insulation Color | White |
| Insulation Height | 0.504" (12.80mm) |
| Ingress Protection | - |
| Base Product Number | 2029265 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.138" (3.50mm) |
| Current Rating (Amps) | 9A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
