Step1: Product

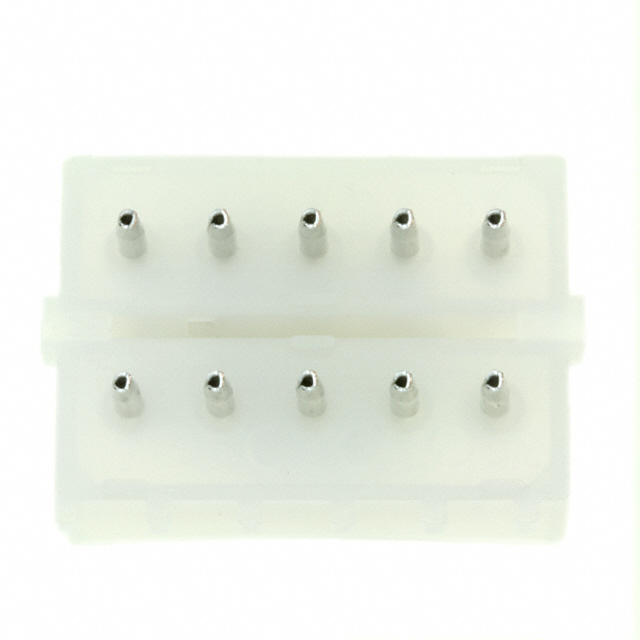

TE Connectivity AMP Connectors 2-380991-0
Images are for reference only
Manufacturer
Manufacturer No
2-380991-0
Packaging
Bulk
Description
CONN HEADER VERT 10POS
Detailed Description
Connector Header Through Hole 10 position 0.200" (5.08mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Commercial MATE-N-LOK
Features
-
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
2
Pitch - Mating
0.200" (5.08mm)
Voltage Rating
-
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.375" (9.53mm)
Ingress Protection
-
Base Product Number
380991
Insulation Material
Polyamide (PA), Nylon
Number of Positions
10
Row Spacing - Mating
0.360" (9.14mm)
Contact Finish - Post
Tin
Contact Length - Post
0.150" (3.81mm)
Current Rating (Amps)
-
Operating Temperature
-
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
0.181" (4.60mm)
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Commercial MATE-N-LOK |
| Features | - |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.200" (5.08mm) |
| Voltage Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.375" (9.53mm) |
| Ingress Protection | - |
| Base Product Number | 380991 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.360" (9.14mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.150" (3.81mm) |
| Current Rating (Amps) | - |
| Operating Temperature | - |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.181" (4.60mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
