Step1: Product

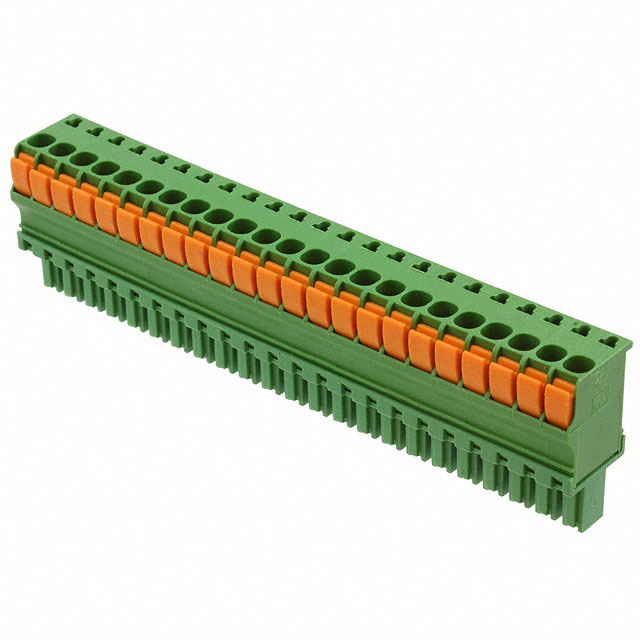

TE Connectivity AMP Connectors 2-1986692-3
Images are for reference only
Manufacturer
Manufacturer No
2-1986692-3
Availability
In Stock
Packaging
Bulk
Description
TERM BLOCK PLUG 23POS 3.50MM
Detailed Description
23 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Datasheet
Payment
Delivery
Type
Plug, Female Sockets
Color
Green
Pitch
0.138" (3.50mm)
Series
-
Features
Side Stacking
Packaging
Bulk
Screw Size
-
Current - UL
9 A
Manufacturer
TE Connectivity AMP Connectors
Voltage - UL
300 V
Current - IEC
-
Mounting Type
Free Hanging (In-Line)
Torque - Screw
-
Plug Wire Entry
180°
Contact Material
Copper Alloy
Housing Material
Polyamide (PA), Nylon
Number of Levels
1
Insulation Height
0.459" (11.66mm)
Termination Style
Screwless - Leg Spring, Push-In Spring
Wire Strip Length
-
Header Orientation
-
Ingress Protection
-
Base Product Number
1986692
Contact Tail Length
-
Number of Positions
23
Positions Per Level
23
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 110°C
Wire Gauge or Range - AWG
14-30 AWG
Wire Gauge or Range - mm²
0.05-2mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.138" (3.50mm) |
| Series | - |
| Features | Side Stacking |
| Packaging | Bulk |
| Screw Size | - |
| Current - UL | 9 A |
| Manufacturer | TE Connectivity AMP Connectors |
| Voltage - UL | 300 V |
| Current - IEC | - |
| Mounting Type | Free Hanging (In-Line) |
| Torque - Screw | - |
| Plug Wire Entry | 180° |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon |
| Number of Levels | 1 |
| Insulation Height | 0.459" (11.66mm) |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Wire Strip Length | - |
| Header Orientation | - |
| Ingress Protection | - |
| Base Product Number | 1986692 |
| Contact Tail Length | - |
| Number of Positions | 23 |
| Positions Per Level | 23 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 110°C |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Material Flammability Rating | UL94 V-0 |
