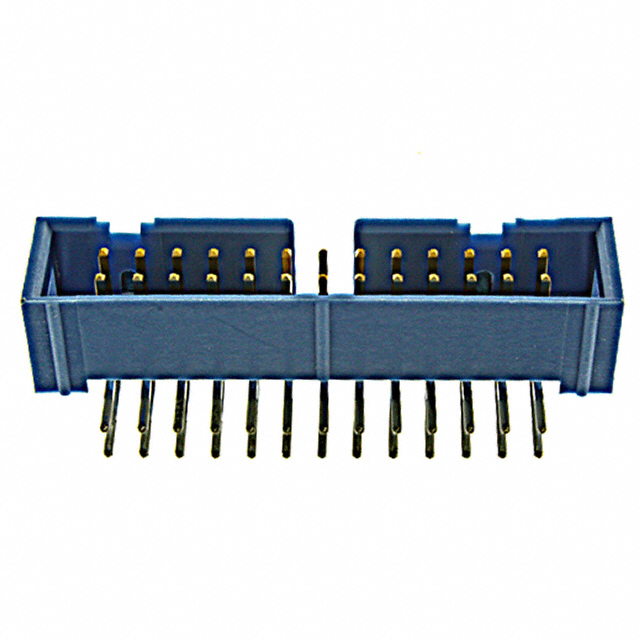

TE Connectivity AMP Connectors 2-1761605-9
Images are for reference only
Manufacturer
Manufacturer No
2-1761605-9
Quantity
54
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER R/A 26POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
AMP-Latch
Features
Keying Slot
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250VAC
Contact Material
Phosphor Bronze
Insulation Color
Blue
Insulation Height
0.350" (8.89mm)
Ingress Protection
-
Base Product Number
1761605
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
26
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.102" (2.60mm)
Current Rating (Amps)
1A per Contact
Operating Temperature
-65°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
0.240" (6.10mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | AMP-Latch |
| Features | Keying Slot |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250VAC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Blue |
| Insulation Height | 0.350" (8.89mm) |
| Ingress Protection | - |
| Base Product Number | 1761605 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 26 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.102" (2.60mm) |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -65°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.240" (6.10mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
