Step1: Product

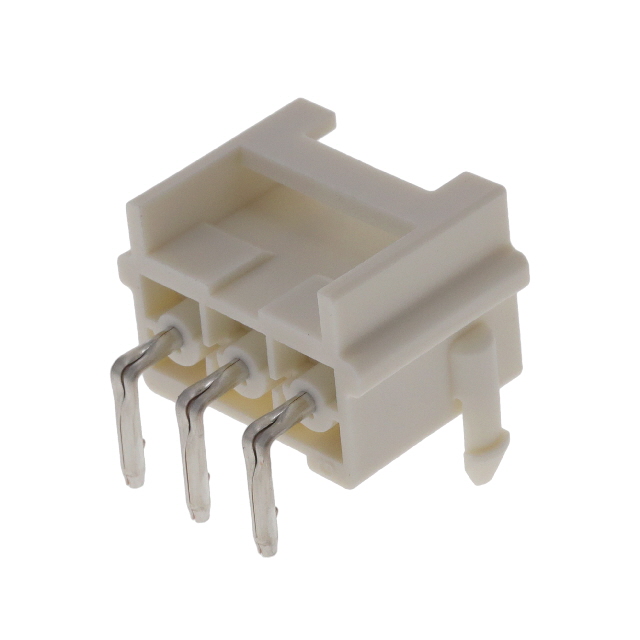

TE Connectivity AMP Connectors 1969694-3
Images are for reference only
Manufacturer
Manufacturer No
1969694-3
Quantity
70
Availability
In Stock
Packaging
Tray
Description
CONN HEADER R/A 3POS 6MM
Detailed Description
Connector Header Through Hole, Right Angle 3 position 0.236" (6.00mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Power Triple Lock
Features
Board Lock, Glow Wire Compliant
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.236" (6.00mm)
Voltage Rating
600VAC
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.589" (14.96mm)
Ingress Protection
-
Base Product Number
1969694
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
3
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-55°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Power Triple Lock |
| Features | Board Lock, Glow Wire Compliant |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.236" (6.00mm) |
| Voltage Rating | 600VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.589" (14.96mm) |
| Ingress Protection | - |
| Base Product Number | 1969694 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 3 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -55°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
