Step1: Product

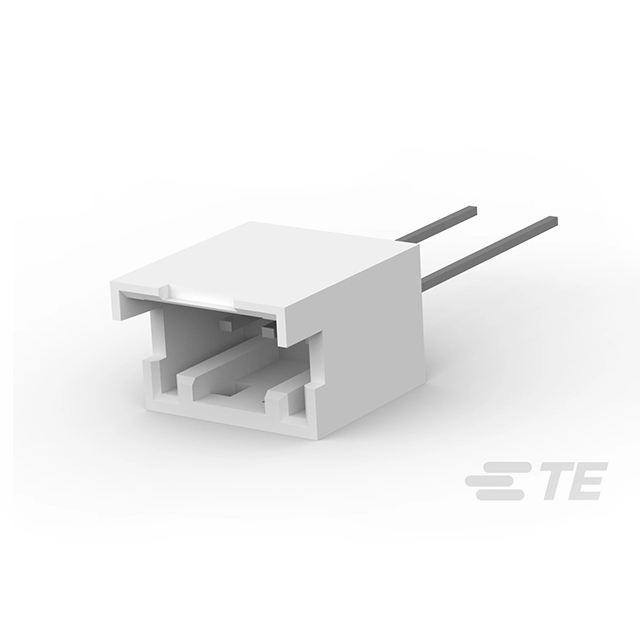

TE Connectivity AMP Connectors 1871845-3
Images are for reference only
Manufacturer
Manufacturer No
1871845-3
Packaging
Cut Tape (CT); Tape & Box (TB)
Description
CONN HEADER VERT 3POS 2.5MM
Detailed Description
Connector Header Through Hole 3 position 0.098" (2.50mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Grace Inertia, GIC
Features
-
Packaging
Cut Tape (CT); Tape & Box (TB)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
50V
Contact Material
Brass
Insulation Color
Natural
Insulation Height
-
Ingress Protection
-
Base Product Number
1871845
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Positions
3
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-30°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
2
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Grace Inertia, GIC |
| Features | - |
| Packaging | Cut Tape (CT); Tape & Box (TB) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 50V |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | - |
| Ingress Protection | - |
| Base Product Number | 1871845 |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Positions | 3 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -30°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | 2 |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
