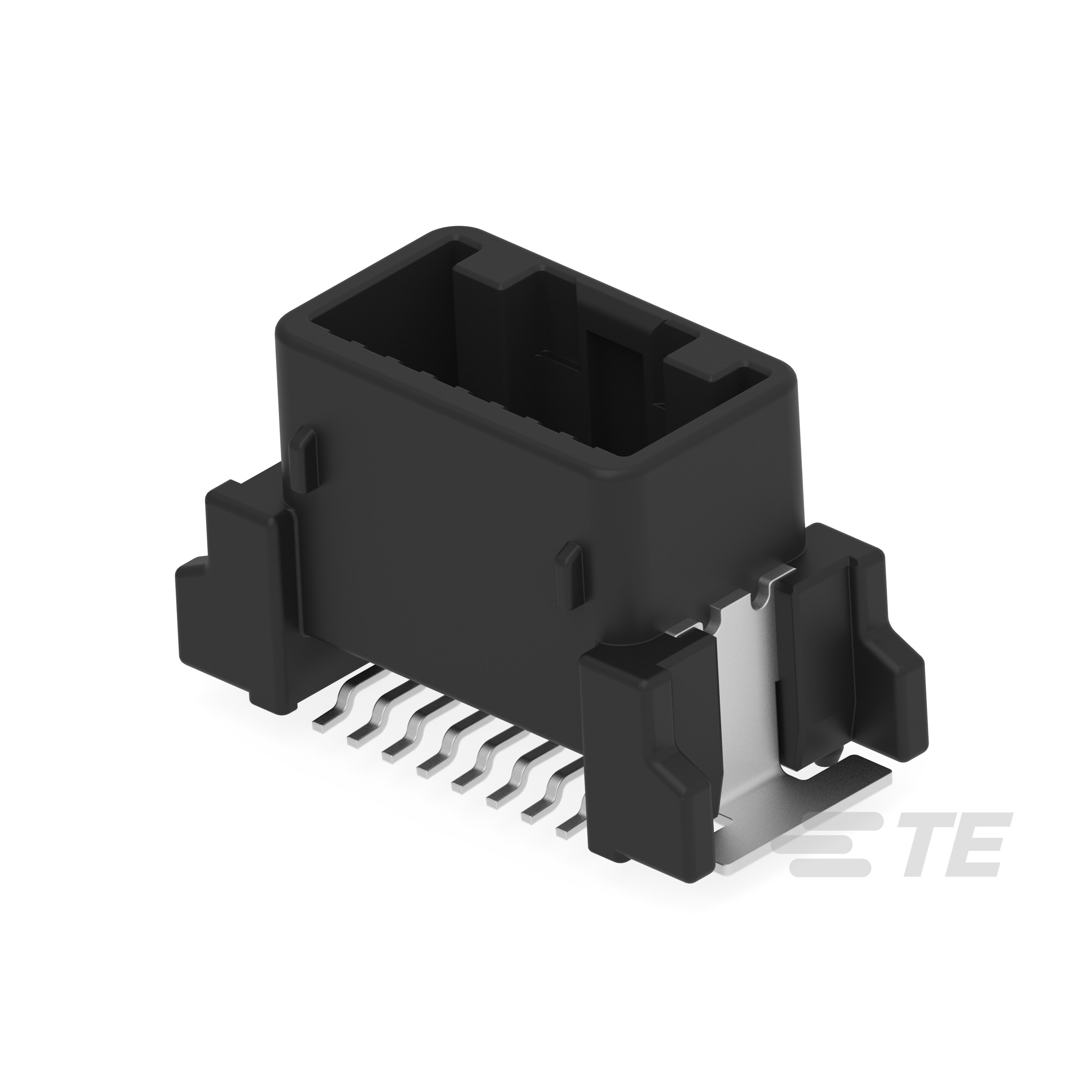

TE Connectivity AMP Connectors 1717396-1
Images are for reference only
Manufacturer
Manufacturer No
1717396-1
Packaging
Bulk
Description
0.64 SMD 16P CAP ASSEMBLY V-TYPE
Detailed Description
Connector Header Surface Mount 16 position 0.087" (2.20mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Milli-Grid 87832
Features
Board Guide, Solder Retention
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.087" (2.20mm)
Voltage Rating
12VDC
Contact Material
Brass
Insulation Color
Black
Insulation Height
-
Ingress Protection
-
Base Product Number
1717396
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Number of Positions
16
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
-
Operating Temperature
-30°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Milli-Grid 87832 |
| Features | Board Guide, Solder Retention |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.087" (2.20mm) |
| Voltage Rating | 12VDC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | - |
| Ingress Protection | - |
| Base Product Number | 1717396 |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | - |
| Operating Temperature | -30°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
