Step1: Product

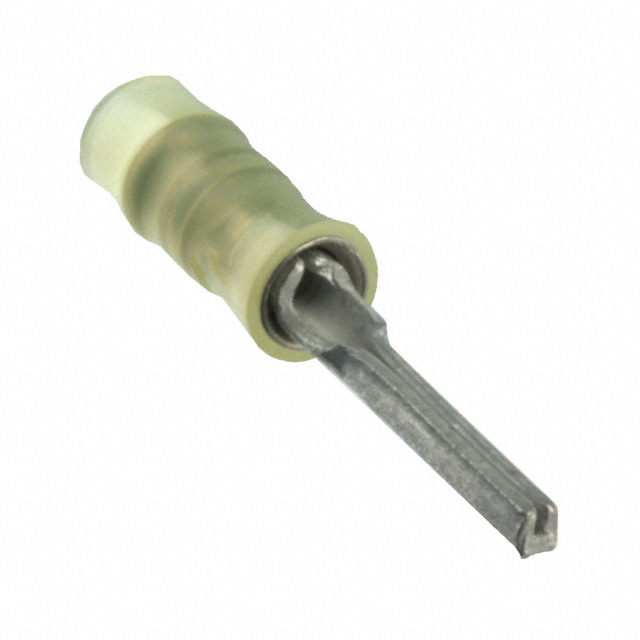

TE Connectivity AMP Connectors 165514-1
Images are for reference only
Manufacturer
Manufacturer No
165514-1
Quantity
2
Availability
In Stock
Packaging
Bulk
Description
CONN WIRE PIN TERM 22-26AWG PIDG
Detailed Description
Wire Pin Terminal Connector 22-26 AWG (0.1~0.4mm²) PIDG Crimp
Datasheet
Payment
Delivery
Color
Yellow
Series
PIDG
Features
Serrated Termination
Packaging
Bulk
Insulation
Insulated
Wire Gauge
22-26 AWG (0.1~0.4mm²)
Termination
Crimp
Length - Pin
0.270" (6.86mm)
Manufacturer
TE Connectivity AMP Connectors
Pin Diameter
Circular - 0.045" (1.14mm) Dia
Contact Finish
Tin
Contact Material
Copper
Length - Overall
0.716" (18.19mm)
Base Product Number
165514
Insulation Diameter
0.083" (2.11mm)
Diameter - Barrel ID
-
Diameter - Barrel OD
-
Length - Termination
-
Material - Insulation
Polyamide (PA), Nylon
| Attribute | Value |
|---|---|
| Color | Yellow |
| Series | PIDG |
| Features | Serrated Termination |
| Packaging | Bulk |
| Insulation | Insulated |
| Wire Gauge | 22-26 AWG (0.1~0.4mm²) |
| Termination | Crimp |
| Length - Pin | 0.270" (6.86mm) |
| Manufacturer | TE Connectivity AMP Connectors |
| Pin Diameter | Circular - 0.045" (1.14mm) Dia |
| Contact Finish | Tin |
| Contact Material | Copper |
| Length - Overall | 0.716" (18.19mm) |
| Base Product Number | 165514 |
| Insulation Diameter | 0.083" (2.11mm) |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
| Length - Termination | - |
| Material - Insulation | Polyamide (PA), Nylon |
