Step1: Product

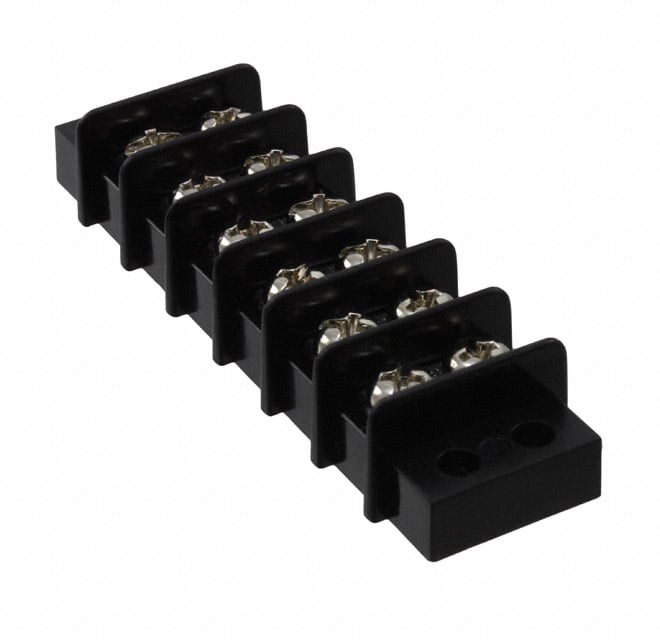

TE Connectivity AMP Connectors 1546306-6
Images are for reference only
Manufacturer
Manufacturer No
1546306-6
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
CONN BARRIER STRIP 6CIRC 0.374"
Detailed Description
6 Circuit 0.374" (9.50mm) Barrier Block Connector Screws
Datasheet
Payment
Delivery
Color
Black
Pitch
0.374" (9.50mm)
Series
Buchanan
Features
Flange
Packaging
Bulk
Wire Gauge
12-22 AWG
Barrier Type
2 Wall (Dual)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Chassis, Panel
Number of Rows
2
Voltage Rating
300V
Top Termination
Screws
Bottom Termination
Closed
Number of Circuits
6
Base Product Number
1546306
Terminal Block Type
Barrier Block
Current Rating (Amps)
20A
Material - Insulation
Thermoplastic
Operating Temperature
-40°C ~ 120°C
Terminal Screw Finish
Nickel
Number of Wire Entries
12
Terminal Screw Material
Steel
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.374" (9.50mm) |
| Series | Buchanan |
| Features | Flange |
| Packaging | Bulk |
| Wire Gauge | 12-22 AWG |
| Barrier Type | 2 Wall (Dual) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Chassis, Panel |
| Number of Rows | 2 |
| Voltage Rating | 300V |
| Top Termination | Screws |
| Bottom Termination | Closed |
| Number of Circuits | 6 |
| Base Product Number | 1546306 |
| Terminal Block Type | Barrier Block |
| Current Rating (Amps) | 20A |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -40°C ~ 120°C |
| Terminal Screw Finish | Nickel |
| Number of Wire Entries | 12 |
| Terminal Screw Material | Steel |
| Material Flammability Rating | UL94 V-0 |
