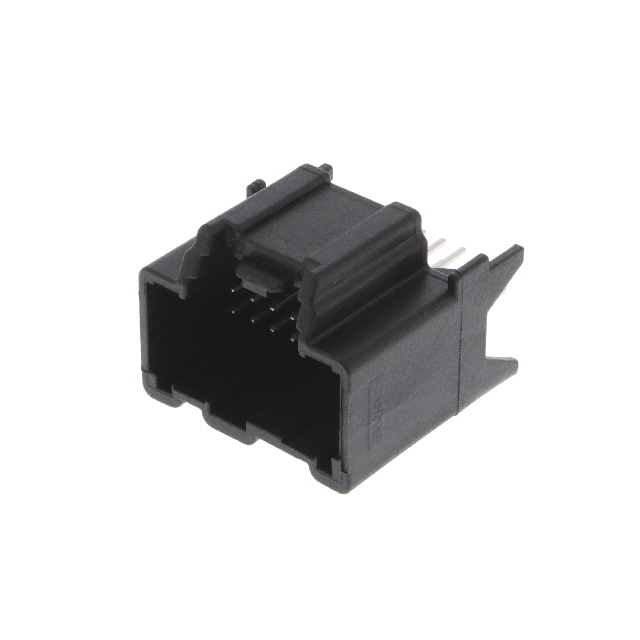

TE Connectivity AMP Connectors 1456819-3
Images are for reference only
Manufacturer
Manufacturer No
1456819-3
Packaging
Bulk
Description
HDR ASY,2X8,UNSELD,VERT,GENY,KEY
Detailed Description
Connector Header Through Hole 16 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Generation Y
Features
-
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
Brass
Insulation Color
Black
Insulation Height
1.027" (26.09mm)
Ingress Protection
-
Base Product Number
1456819
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT)
Number of Positions
16
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
-
Operating Temperature
-
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 HB
Contact Finish Thickness - Post
98.4µin (2.50µm)
Contact Finish Thickness - Mating
31.5µin (0.80µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Generation Y |
| Features | - |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 1.027" (26.09mm) |
| Ingress Protection | - |
| Base Product Number | 1456819 |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Current Rating (Amps) | - |
| Operating Temperature | - |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 HB |
| Contact Finish Thickness - Post | 98.4µin (2.50µm) |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
