Step1: Product

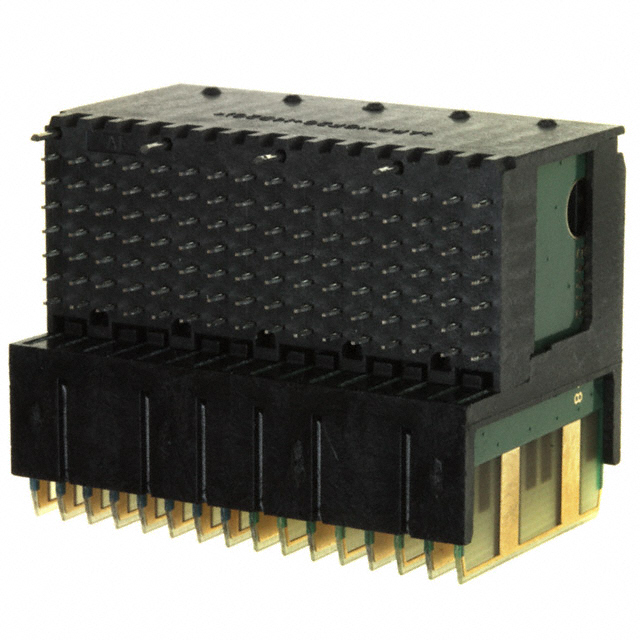

TE Connectivity AMP Connectors 1410970-3
Images are for reference only
Manufacturer
Manufacturer No
1410970-3
Availability
In Stock
Packaging
Tube
Description
CONN PLUG VITA46 112POS EDGE MNT
Detailed Description
112 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Center
Datasheet
Payment
Delivery
Color
Black
Pitch
0.071" (1.80mm)
Series
MULTIGIG RT2
Features
Board Guide
Packaging
Tube
Termination
Press-Fit
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Plug, Male Blades
Contact Finish
Gold
Number of Rows
7
Voltage Rating
50V
Connector Style
VITA 46, Center
Connector Usage
Daughtercard
Number of Columns
16
Base Product Number
1410970
Number of Positions
112
Current Rating (Amps)
-
Operating Temperature
-55°C ~ 105°C
Contact Layout, Typical
16 Signal Pairs, 44 Single Signal, 36 Ground
Contact Finish Thickness
50.0µin (1.27µm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.071" (1.80mm) |
| Series | MULTIGIG RT2 |
| Features | Board Guide |
| Packaging | Tube |
| Termination | Press-Fit |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Plug, Male Blades |
| Contact Finish | Gold |
| Number of Rows | 7 |
| Voltage Rating | 50V |
| Connector Style | VITA 46, Center |
| Connector Usage | Daughtercard |
| Number of Columns | 16 |
| Base Product Number | 1410970 |
| Number of Positions | 112 |
| Current Rating (Amps) | - |
| Operating Temperature | -55°C ~ 105°C |
| Contact Layout, Typical | 16 Signal Pairs, 44 Single Signal, 36 Ground |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
