Step1: Product

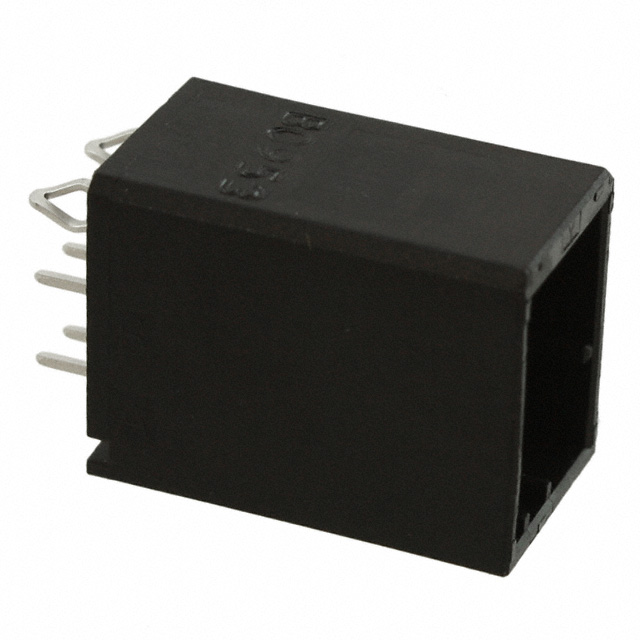

TE Connectivity AMP Connectors 1318124-2
Images are for reference only
Manufacturer
Manufacturer No
1318124-2
Quantity
4,384
Availability
In Stock
Packaging
Tube
Description
CONN HEADER VERT 6POS 2.5MM
Detailed Description
Connector Header Through Hole 6 position 0.098" (2.50mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
Dynamic D-2100
Features
Board Lock
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose, Industrial
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
2
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.700" (17.78mm)
Ingress Protection
-
Base Product Number
1318124
Insulation Material
Thermoplastic, Polyester, Glass Filled
Number of Positions
6
Row Spacing - Mating
0.148" (3.75mm)
Contact Finish - Post
Tin
Contact Length - Post
0.134" (3.40mm)
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | Dynamic D-2100 |
| Features | Board Lock |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.700" (17.78mm) |
| Ingress Protection | - |
| Base Product Number | 1318124 |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.148" (3.75mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.134" (3.40mm) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
