TE Connectivity AMP Connectors 104655-5
Images are for reference only
Manufacturer
Manufacturer No
104655-5
Packaging
Tube
Description

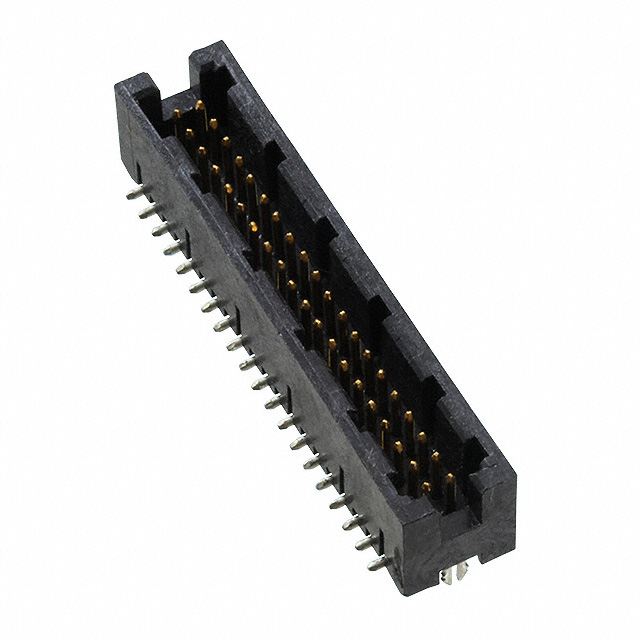

CONN HEADER SMD 40POS 1.27MM
Detailed Description
Connector Header Surface Mount 40 position 0.050" (1.27mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Board
Series
AMPMODU 50/50 Grid
Features
Board Lock
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose, Medical, Military, Telecommunications
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
-
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.226" (5.74mm)
Ingress Protection
-
Base Product Number
104655
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
40
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin-Lead
Contact Length - Post
-
Current Rating (Amps)
0.5A per Contact
Operating Temperature
-65°C ~ 105°C
Mated Stacking Heights
6.35mm
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
0.120" (3.05mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board |
| Series | AMPMODU 50/50 Grid |
| Features | Board Lock |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Military, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | - |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.226" (5.74mm) |
| Ingress Protection | - |
| Base Product Number | 104655 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 40 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | - |
| Current Rating (Amps) | 0.5A per Contact |
| Operating Temperature | -65°C ~ 105°C |
| Mated Stacking Heights | 6.35mm |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.120" (3.05mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
