Step1: Product

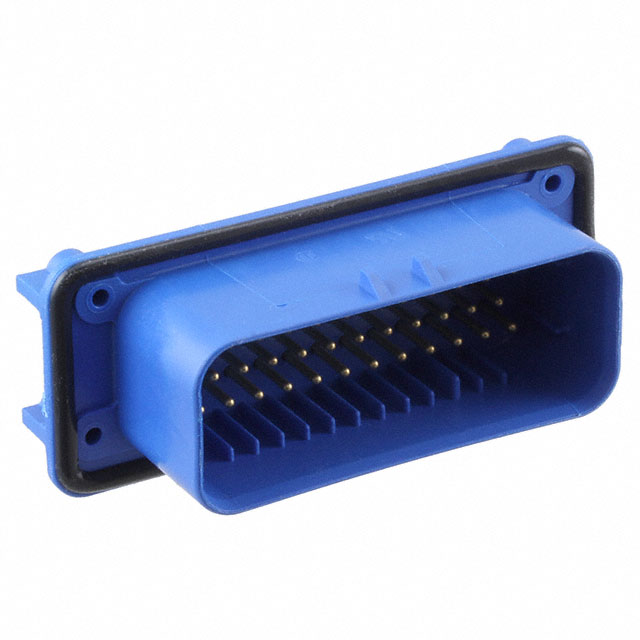

TE Connectivity AMP Connectors 1-776163-5
Images are for reference only
Manufacturer
Manufacturer No
1-776163-5
Quantity
10
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER R/A 35POS 4MM
Detailed Description
Connector Header Panel Mount, Through Hole, Right Angle 35 position 0.157" (4.00mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
AMPSEAL
Features
Board Guide, Sealed
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
3
Pitch - Mating
0.157" (4.00mm)
Voltage Rating
250VAC
Contact Material
Brass
Insulation Color
Blue
Insulation Height
-
Ingress Protection
-
Base Product Number
776163
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
35
Row Spacing - Mating
0.157" (4.00mm)
Contact Finish - Post
-
Contact Length - Post
-
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold-Palladium
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | AMPSEAL |
| Features | Board Guide, Sealed |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 3 |
| Pitch - Mating | 0.157" (4.00mm) |
| Voltage Rating | 250VAC |
| Contact Material | Brass |
| Insulation Color | Blue |
| Insulation Height | - |
| Ingress Protection | - |
| Base Product Number | 776163 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 35 |
| Row Spacing - Mating | 0.157" (4.00mm) |
| Contact Finish - Post | - |
| Contact Length - Post | - |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold-Palladium |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
