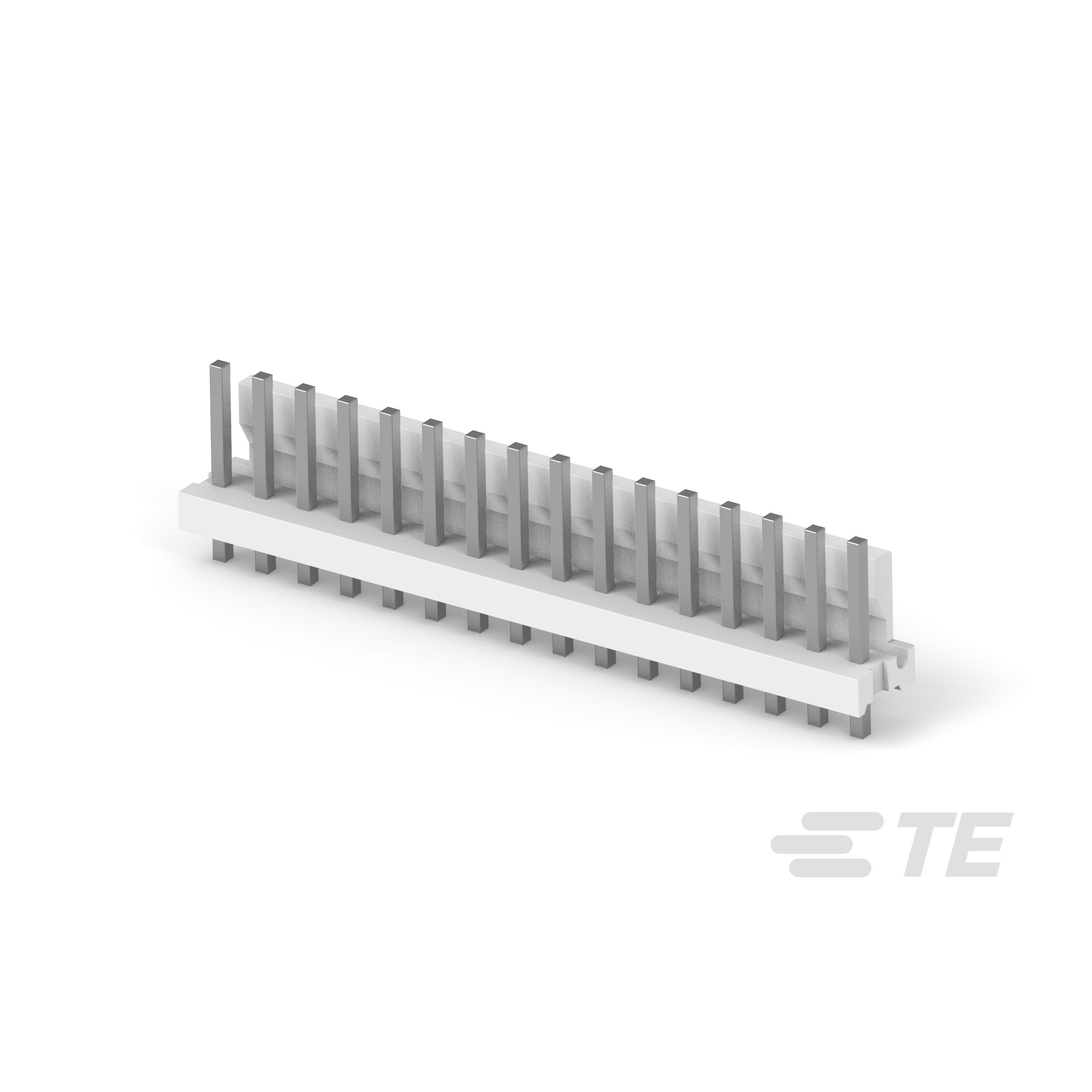

TE Connectivity AMP Connectors 1-641119-6
Images are for reference only
Manufacturer
Manufacturer No
1-641119-6
Packaging
Bulk
Description
CONN HEADER VERT 16POS 3.96MM
Detailed Description
Connector Header Through Hole 16 position 0.156" (3.96mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
MTA-156
Features
-
Packaging
Bulk
Shrouding
Shrouded - 1 Wall
Termination
Solder
Applications
General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.156" (3.96mm)
Voltage Rating
600VAC
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.425" (10.80mm)
Ingress Protection
-
Base Product Number
641119
Insulation Material
Thermoplastic, Glass Filled
Number of Positions
16
Row Spacing - Mating
-
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.125" (3.18mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-55°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
0.650" (16.51mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.400" (10.16mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | MTA-156 |
| Features | - |
| Packaging | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.156" (3.96mm) |
| Voltage Rating | 600VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.425" (10.80mm) |
| Ingress Protection | - |
| Base Product Number | 641119 |
| Insulation Material | Thermoplastic, Glass Filled |
| Number of Positions | 16 |
| Row Spacing - Mating | - |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.125" (3.18mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -55°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | 0.650" (16.51mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.400" (10.16mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
