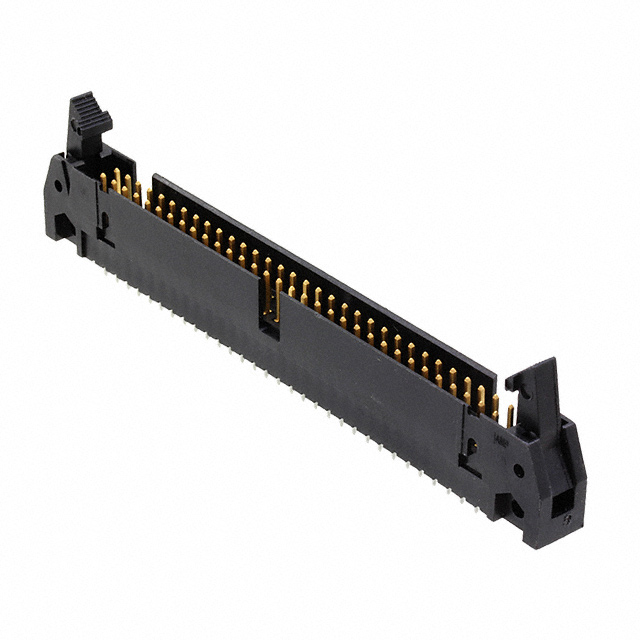

TE Connectivity AMP Connectors 1-5499160-2
Images are for reference only
Manufacturer
Manufacturer No
1-5499160-2
Packaging
Bulk
Description
CONN HEADER VERT 64POS 2.54MM
Detailed Description
Connector Header Through Hole 64 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
AMP-Latch
Features
Keying Slot, Mounting Flange
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Lock/Eject Hooks, Short
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
-
Insulation Color
Black
Insulation Height
0.549" (13.94mm)
Ingress Protection
-
Base Product Number
5499160
Insulation Material
-
Number of Positions
64
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.110" (2.79mm)
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
0.639" (16.23mm)
Contact Finish - Mating
Gold or Gold-Palladium
Contact Length - Mating
0.240" (6.10mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | AMP-Latch |
| Features | Keying Slot, Mounting Flange |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | - |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | - |
| Insulation Color | Black |
| Insulation Height | 0.549" (13.94mm) |
| Ingress Protection | - |
| Base Product Number | 5499160 |
| Insulation Material | - |
| Number of Positions | 64 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.110" (2.79mm) |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Mated Stacking Heights | - |
| Overall Contact Length | 0.639" (16.23mm) |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Length - Mating | 0.240" (6.10mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
