Step1: Product
TE Connectivity AMP Connectors 1-2823448-1

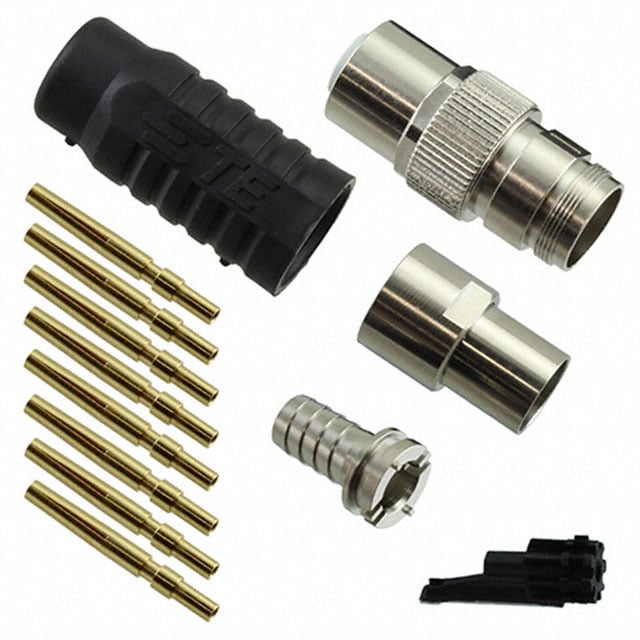

Images are for reference only
Manufacturer
Manufacturer No
1-2823448-1
Packaging
Bulk
Description
CONN RCPT FMALE 8POS GOLD CRIMP
Detailed Description
8 Position Circular Connector Receptacle, Female Sockets Crimp
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Color
Silver
Series
M12 Rail
Features
Backshell
Packaging
Bulk
Shielding
Shielded
Orientation
A
Termination
Crimp
Applications
-
Shell Finish
Nickel
Cable Opening
-
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
30VDC
Insert Material
Thermoplastic
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
2823448
Number of Positions
8
Shell Size - Insert
M12-8
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | Silver |
| Series | M12 Rail |
| Features | Backshell |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | A |
| Termination | Crimp |
| Applications | - |
| Shell Finish | Nickel |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 30VDC |
| Insert Material | Thermoplastic |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | 2823448 |
| Number of Positions | 8 |
| Shell Size - Insert | M12-8 |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
