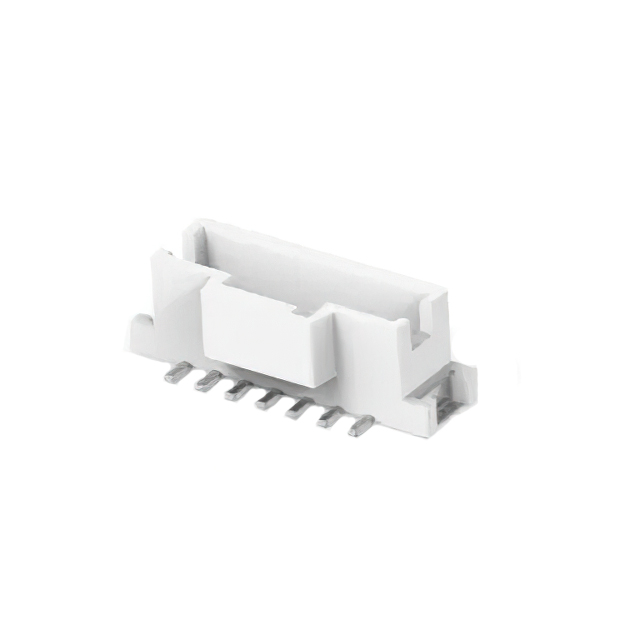

TE Connectivity AMP Connectors 1-2232829-7
Images are for reference only
Manufacturer
Manufacturer No
1-2232829-7
Quantity
30
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SGI2.0 HEADER ASSEMBLY SMT 7P,KE
Detailed Description
Connector Header Surface Mount 7 position 0.079" (2.00mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Grace Inertia 2.0
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
-
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
50VAC
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.252" (6.40mm)
Ingress Protection
-
Base Product Number
2232829
Insulation Material
Polyamide (PA), Nylon
Number of Positions
7
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Length - Post
-
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Finish Thickness - Mating
78.7µin (2.00µm)
