Step1: Product

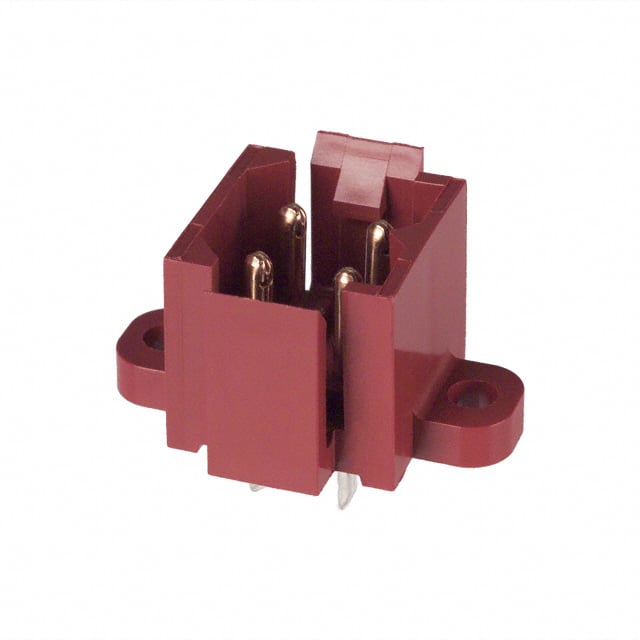

TE Connectivity AMP Connectors 1-207119-0
Images are for reference only
Manufacturer
Manufacturer No
1-207119-0
Packaging
Box
Description
CONN HEADER VERT 4POS 4.98MM
Detailed Description
Connector Header Through Hole 4 position 0.196" (4.98mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
Metrimate
Features
Mounting Flange
Packaging
Box
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Lock
Number of Rows
2
Pitch - Mating
0.196" (4.98mm)
Voltage Rating
600V
Contact Material
Brass
Insulation Color
Black, Red
Insulation Height
0.464" (11.79mm)
Ingress Protection
-
Base Product Number
207119
Insulation Material
Polyamide (PA), Nylon
Number of Positions
4
Row Spacing - Mating
0.196" (4.98mm)
Contact Finish - Post
Tin
Contact Length - Post
0.181" (4.60mm)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 130°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold or PdNi +Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | Metrimate |
| Features | Mounting Flange |
| Packaging | Box |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.196" (4.98mm) |
| Voltage Rating | 600V |
| Contact Material | Brass |
| Insulation Color | Black, Red |
| Insulation Height | 0.464" (11.79mm) |
| Ingress Protection | - |
| Base Product Number | 207119 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 4 |
| Row Spacing - Mating | 0.196" (4.98mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.181" (4.60mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 130°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold or PdNi +Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
