TE Connectivity ALCOSWITCH Switches EDSP06SGRFNTU04

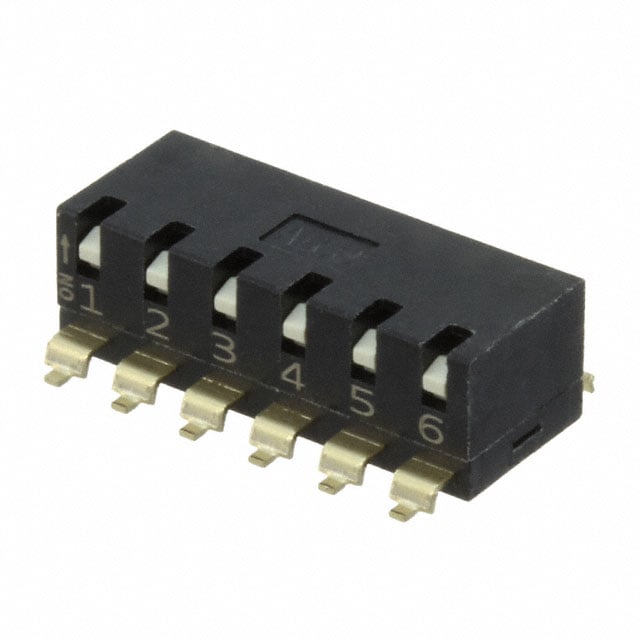

Images are for reference only
Manufacturer
Manufacturer No
EDSP06SGRFNTU04
Availability
In Stock
Packaging
Tube
Description
SWITCH PIANO DIP SPST 0.025A 24V
Detailed Description
Dip Switch SPST 6 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
Datasheet
Payment
Delivery
Pitch
0.100" (2.54mm), Full
Length
0.596" (15.14mm)
Series
EDSP
Circuit
SPST
Features
-
Washable
No
Packaging
Tube
Manufacturer
TE Connectivity ALCOSWITCH Switches
Actuator Type
Piano
Body Material
Polyamide (PA), Nylon
Mounting Type
Surface Mount, Right Angle
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
24VDC
Electrical Life
2,000 Cycles
Mechanical Life
2,000 Cycles
Contact Material
Copper Alloy
Termination Style
Gull Wing
Height Above Board
0.197" (5.00mm)
Base Product Number
EDSP06
Number of Positions
6
Current Rating (Amps)
25mA
Operating Temperature
-20°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.596" (15.14mm) |
| Series | EDSP |
| Circuit | SPST |
| Features | - |
| Washable | No |
| Packaging | Tube |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Actuator Type | Piano |
| Body Material | Polyamide (PA), Nylon |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | 2,000 Cycles |
| Mechanical Life | 2,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | Gull Wing |
| Height Above Board | 0.197" (5.00mm) |
| Base Product Number | EDSP06 |
| Number of Positions | 6 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -20°C ~ 85°C |
