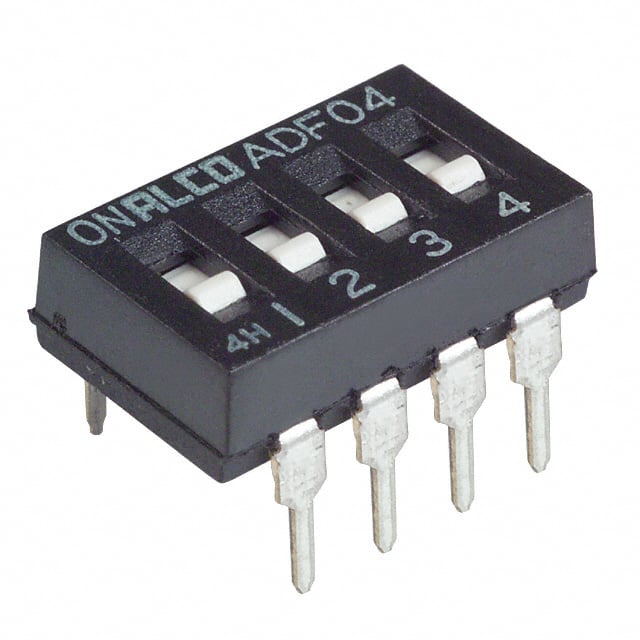

TE Connectivity ALCOSWITCH Switches 1825002-5
Images are for reference only
Manufacturer
Manufacturer No
1825002-5
Quantity
30
Availability
In Stock
Packaging
Tube
Description
SWITCH SLIDE DIP SPST 0.025A 24V
Detailed Description
Dip Switch SPST 4 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Datasheet
Payment
Delivery
Pitch
0.100" (2.54mm), Full
Length
0.478" (12.14mm)
Series
ADF
Circuit
SPST
Features
-
Washable
Yes
Packaging
Tube
Manufacturer
TE Connectivity ALCOSWITCH Switches
Actuator Type
Slide (Standard)
Body Material
Polyphenylene Sulfide (PPS)
Mounting Type
Through Hole
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
24VDC
Electrical Life
1,000 Cycles
Mechanical Life
1,000 Cycles
Contact Material
Copper Alloy
Termination Style
PC Pin
Height Above Board
0.189" (4.80mm)
Base Product Number
1825002
Number of Positions
4
Current Rating (Amps)
25mA
Operating Temperature
-30°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.478" (12.14mm) |
| Series | ADF |
| Circuit | SPST |
| Features | - |
| Washable | Yes |
| Packaging | Tube |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Electrical Life | 1,000 Cycles |
| Mechanical Life | 1,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | PC Pin |
| Height Above Board | 0.189" (4.80mm) |
| Base Product Number | 1825002 |
| Number of Positions | 4 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -30°C ~ 85°C |
