Step1: Product

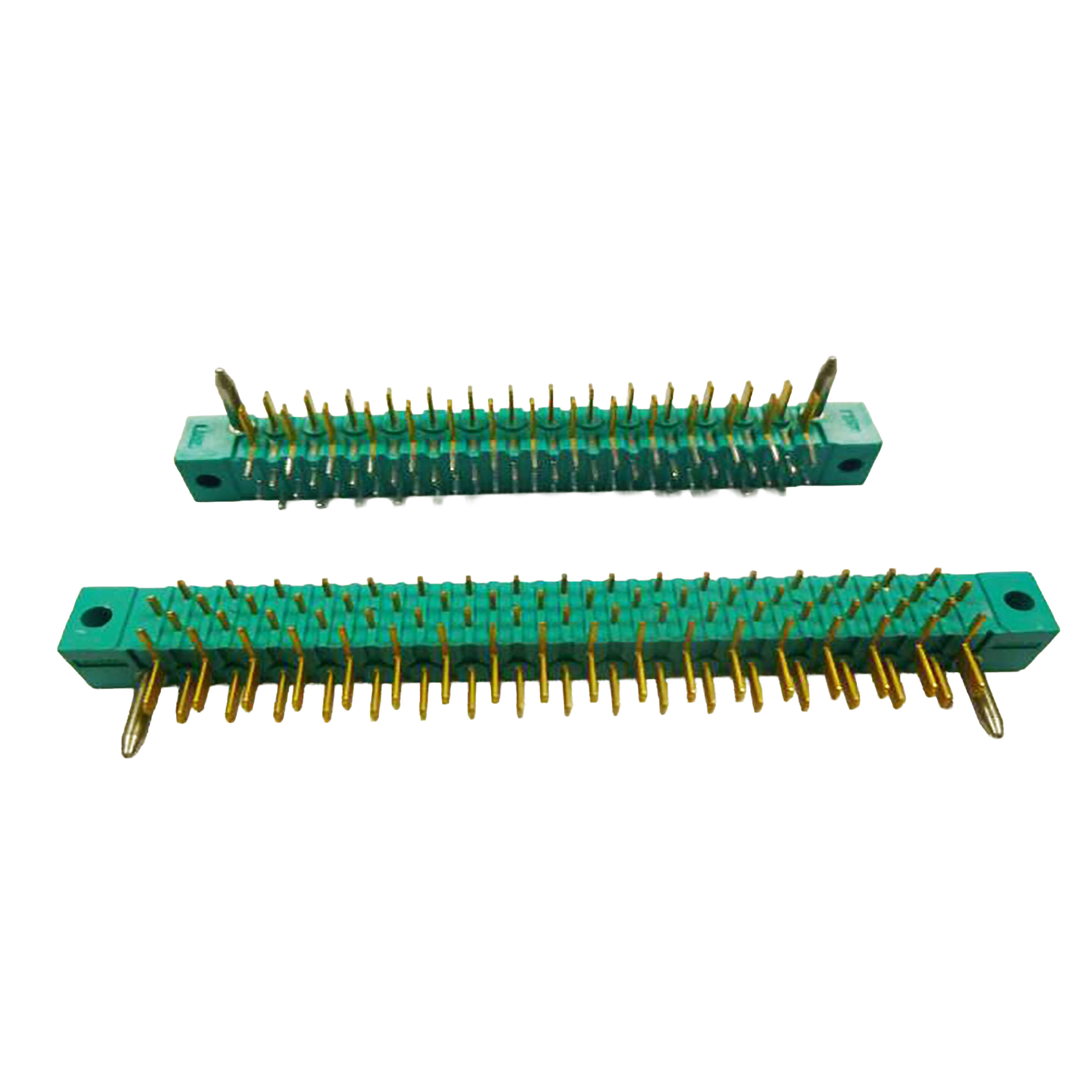

TE Connectivity Aerospace, Defense and Marine 3-582152-5
Images are for reference only
Manufacturer
Manufacturer No
3-582152-5
Packaging
Bulk
Description
CONN HEADER R/A 41POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 41 position 0.100" (2.54mm)
Datasheet
Payment
Delivery
Mfr
TE Connectivity Aerospace, Defense and Marine
Style
Board to Board or Cable
Series
AMP-BLADE
Features
Mating Guide, Mounting Flange
Packaging
Bulk
Shrouding
Unshrouded
Termination
Solder
Applications
General Purpose
Contact Type
Male Blade
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
-
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
-
Contact Material
Gilding Metal
Insulation Color
Green
Insulation Height
0.415" (10.54mm)
Ingress Protection
-
Base Product Number
582152
Insulation Material
Diallyl Phthalate (DAP), Glass Filled
Number of Positions
41
Row Spacing - Mating
0.125" (3.18mm)
Contact Finish - Post
-
Contact Length - Post
0.120" (3.05mm)
Current Rating (Amps)
5A
Operating Temperature
-65°C ~ 125°C
Mated Stacking Heights
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Contact Length - Mating
-
Number of Positions Loaded
All
Material Flammability Rating
-
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Style | Board to Board or Cable |
| Series | AMP-BLADE |
| Features | Mating Guide, Mounting Flange |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Blade |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | - |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Gilding Metal |
| Insulation Color | Green |
| Insulation Height | 0.415" (10.54mm) |
| Ingress Protection | - |
| Base Product Number | 582152 |
| Insulation Material | Diallyl Phthalate (DAP), Glass Filled |
| Number of Positions | 41 |
| Row Spacing - Mating | 0.125" (3.18mm) |
| Contact Finish - Post | - |
| Contact Length - Post | 0.120" (3.05mm) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -65°C ~ 125°C |
| Mated Stacking Heights | - |
| Overall Contact Length | - |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | - |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
