TE Connectivity Aerospace, Defense and Marine 2-1617076-7

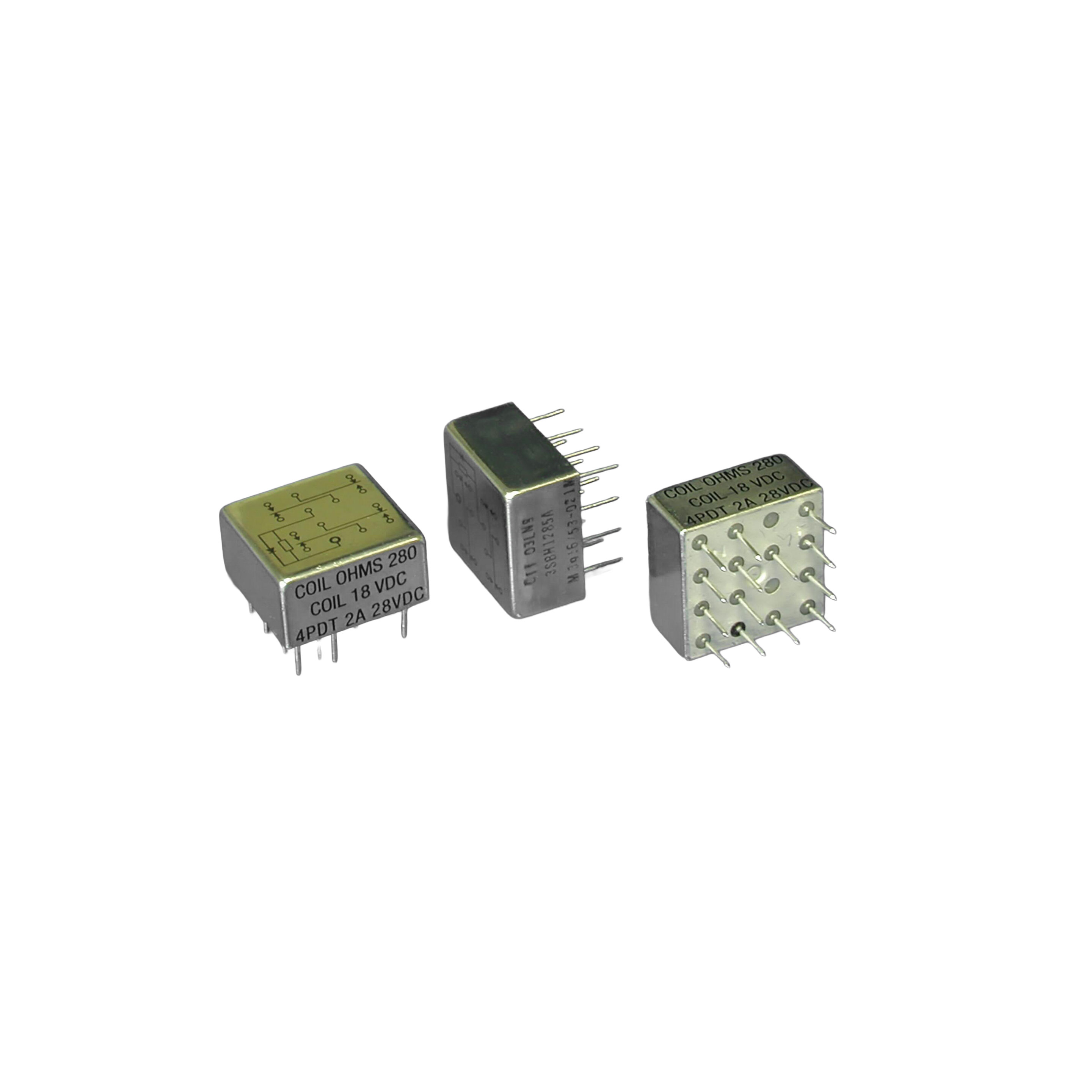

Images are for reference only
Manufacturer
Manufacturer No
2-1617076-7
Availability
In Stock
Packaging
Bulk
Description
RELAY GEN PURPOSE 4PDT 2A 26.5V
Detailed Description
General Purpose Relay 4PDT (4 Form C) Chassis Mount
Datasheet
Payment
Delivery
Grade
-
Series
3SBH, CII
Features
Diode
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Seal Rating
Sealed - Hermetically
Coil Current
36.8 mA
Coil Voltage
26.5VDC
Contact Form
4PDT (4 Form C)
Manufacturer
TE Connectivity Aerospace, Defense and Marine
Operate Time
4 ms
Release Time
4 ms
Mounting Type
Chassis Mount
Qualification
-
Approval Agency
-
Coil Insulation
-
Coil Resistance
720 Ohms
Contact Material
-
Switching Voltage
115VAC, 28VDC - Max
Termination Style
Solder Hook
Base Product Number
3SBH1
Load - Max Switching
230VA, 56W
Must Operate Voltage
13.5 VDC
Must Release Voltage
1.5 VDC
Operating Temperature
-65°C ~ 125°C
Contact Rating (Current)
2 A
| Attribute | Value |
|---|---|
| Grade | - |
| Series | 3SBH, CII |
| Features | Diode |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Hermetically |
| Coil Current | 36.8 mA |
| Coil Voltage | 26.5VDC |
| Contact Form | 4PDT (4 Form C) |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Mounting Type | Chassis Mount |
| Qualification | - |
| Approval Agency | - |
| Coil Insulation | - |
| Coil Resistance | 720 Ohms |
| Contact Material | - |
| Switching Voltage | 115VAC, 28VDC - Max |
| Termination Style | Solder Hook |
| Base Product Number | 3SBH1 |
| Load - Max Switching | 230VA, 56W |
| Must Operate Voltage | 13.5 VDC |
| Must Release Voltage | 1.5 VDC |
| Operating Temperature | -65°C ~ 125°C |
| Contact Rating (Current) | 2 A |
