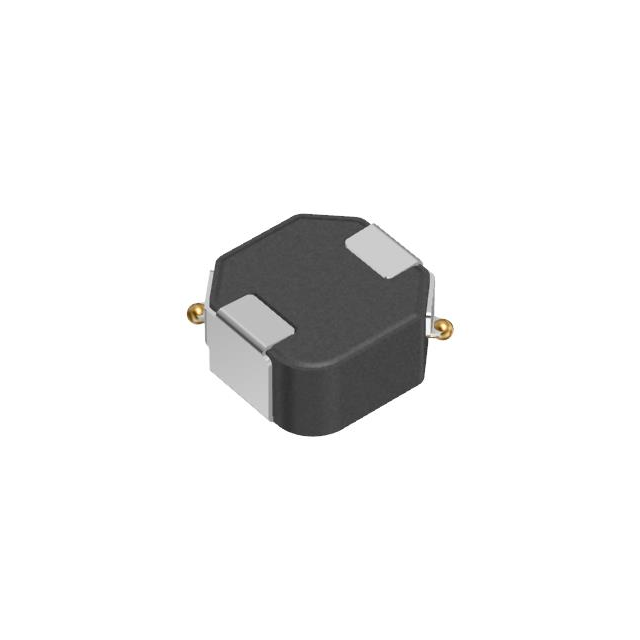

TDK SPM4020T-R47M-DZ
Images are for reference only
Manufacturer
Manufacturer No
SPM4020T-R47M-DZ
Quantity
574
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FIXED IND 470NH 7.8A 11.6 MOHM
Detailed Description
470 nH Shielded Drum Core, Wirewound Inductor 7.8 A 11.6mOhm Max Nonstandard
Datasheet
Payment
Delivery
Mfr
TDK
Type
Drum Core, Wirewound
Series
SPM-DZ
Ratings
AEC-Q200
Features
-
Q @ Freq
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Tolerance
±20%
Inductance
470 nH
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Metal Composite
Size / Dimension
0.169" L x 0.161" W (4.30mm x 4.10mm)
DC Resistance (DCR)
11.6mOhm Max
Current Rating (Amps)
7.8 A
Height - Seated (Max)
0.079" (2.00mm)
Operating Temperature
-55°C ~ 155°C
Supplier Device Package
-
Frequency - Self Resonant
-
Current - Saturation (Isat)
16.7A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | TDK |
| Type | Drum Core, Wirewound |
| Series | SPM-DZ |
| Ratings | AEC-Q200 |
| Features | - |
| Q @ Freq | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 470 nH |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Metal Composite |
| Size / Dimension | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| DC Resistance (DCR) | 11.6mOhm Max |
| Current Rating (Amps) | 7.8 A |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Operating Temperature | -55°C ~ 155°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | - |
| Current - Saturation (Isat) | 16.7A |
| Inductance Frequency - Test | 100 kHz |
