Step1: Product
TDK DEA252593BT-2074A3

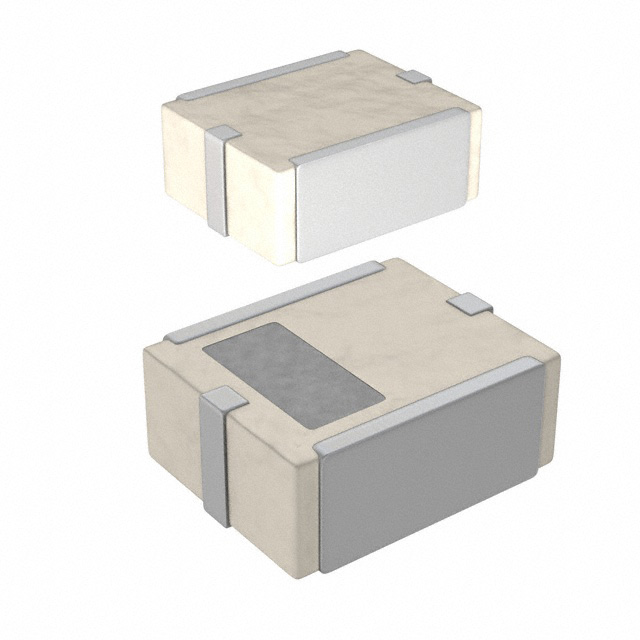

Images are for reference only
Manufacturer
Manufacturer No
DEA252593BT-2074A3
Date Code
19+
Quantity
20
Availability
In Stock
Package
1008 (2520 Metric), 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF FILTER BANDPASS 2.593GHZ 1008
Detailed Description
2.593GHz Center Frequency Band Pass RF Filter (Radio Frequency) 194MHz Bandwidth 1.7dB 1008 (2520 Metric), 4 PC Pad
Datasheet
Payment
Delivery
Ripple
0.2dB
Series
DEA
Bandwidth
194MHz
Frequency
2.593GHz Center
Packaging
Tape & Reel (TR); Cut Tape (CT)
Filter Type
Band Pass
Height (Max)
0.039" (1.00mm)
Manufacturer
TDK
Mounting Type
Surface Mount
Insertion Loss
1.7dB
Package / Case
1008 (2520 Metric), 4 PC Pad
Size / Dimension
0.098" L x 0.079" W (2.50mm x 2.00mm)
| Attribute | Value |
|---|---|
| Ripple | 0.2dB |
| Series | DEA |
| Bandwidth | 194MHz |
| Frequency | 2.593GHz Center |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Filter Type | Band Pass |
| Height (Max) | 0.039" (1.00mm) |
| Manufacturer | TDK |
| Mounting Type | Surface Mount |
| Insertion Loss | 1.7dB |
| Package / Case | 1008 (2520 Metric), 4 PC Pad |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
