Step1: Product

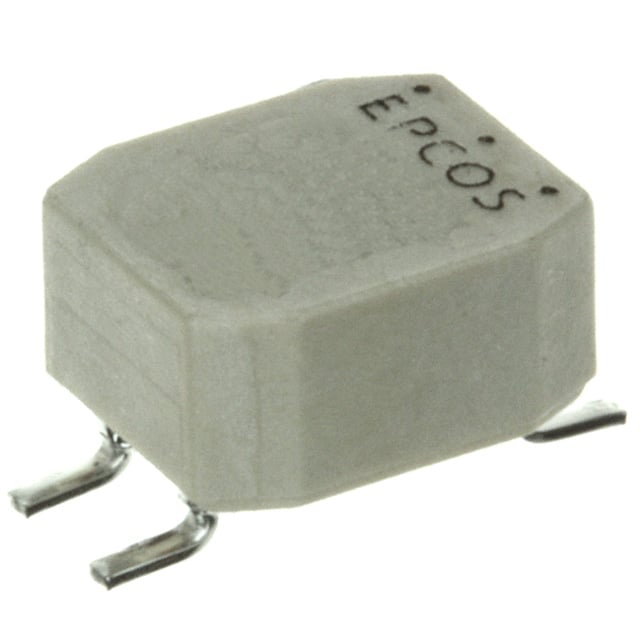

TDK B82793C0502N201
Images are for reference only
Manufacturer
Manufacturer No
B82793C0502N201
Quantity
2,037
Availability
In Stock
Package
Horizontal, 4 Gull Wing
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CMC 5UH 1.2A 2LN SMD AEC-Q200
Detailed Description
5 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 1.2A DCR 60mOhm (Typ)
Datasheet
Payment
Delivery
Series
B82793
Ratings
AEC-Q200
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Filter Type
Signal Line
Height (Max)
0.189" (4.80mm)
Manufacturer
TDK
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 Gull Wing
Approval Agency
-
Number of Lines
2
Size / Dimension
0.280" L x 0.236" W (7.10mm x 6.00mm)
Voltage Rating - AC
42V
Voltage Rating - DC
80V
Current Rating (Max)
1.2A
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
5 µH @ 100 kHz
DC Resistance (DCR) (Max)
60mOhm (Typ)
| Attribute | Value |
|---|---|
| Series | B82793 |
| Ratings | AEC-Q200 |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Filter Type | Signal Line |
| Height (Max) | 0.189" (4.80mm) |
| Manufacturer | TDK |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 Gull Wing |
| Approval Agency | - |
| Number of Lines | 2 |
| Size / Dimension | 0.280" L x 0.236" W (7.10mm x 6.00mm) |
| Voltage Rating - AC | 42V |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 1.2A |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 5 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 60mOhm (Typ) |
