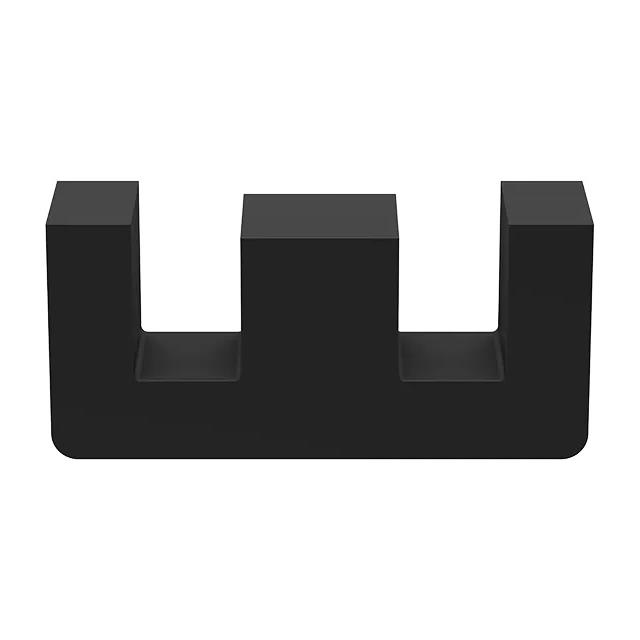

TDK B66375Q0080K197

Images are for reference only

Manufacturer

TDK

Manufacturer No

B66375Q0080K197

Packaging

Tray

Description

E80/38/20-N97-DG80

Detailed Description

Uncoated N97 Ferrite Core E Type 3.150" (80.00mm) Length 0.795" (20.20mm) Width Diameter 1.516" (38.50mm) Height

Datasheet

B66375Q0080K197

Payment

Delivery

Gap

Gapped

Width

0.795" (20.20mm)

Finish

Uncoated

Height

1.516" (38.50mm)

Length

3.150" (80.00mm)

Series

B66375

Diameter

-

Material

N97

Core Type

E

Packaging

Tray

Tolerance

±10%

Manufacturer

TDK

Inductance Factor (Al)

80 nH

Supplier Device Package

E 80 x 38 x 20

Effective Area (Ae) mm²

390.0

Effective Length (le) mm

184.0

Initial Permeability (µi)

2300

Core Factor (ΣI/A) mm⁻¹

0.47

Effective Magnetic Volume (Ve) mm³

71800.0

Minimum Core Cross Section (Amin) mm²

388.0

Attribute	Value
Gap	Gapped
Width	0.795" (20.20mm)
Finish	Uncoated
Height	1.516" (38.50mm)
Length	3.150" (80.00mm)
Series	B66375
Diameter	-
Material	N97
Core Type	E
Packaging	Tray
Tolerance	±10%
Manufacturer	TDK
Inductance Factor (Al)	80 nH
Supplier Device Package	E 80 x 38 x 20
Effective Area (Ae) mm²	390.0
Effective Length (le) mm	184.0
Initial Permeability (µi)	2300
Core Factor (ΣI/A) mm⁻¹	0.47
Effective Magnetic Volume (Ve) mm³	71800.0
Minimum Core Cross Section (Amin) mm²	388.0
