Step1: Product

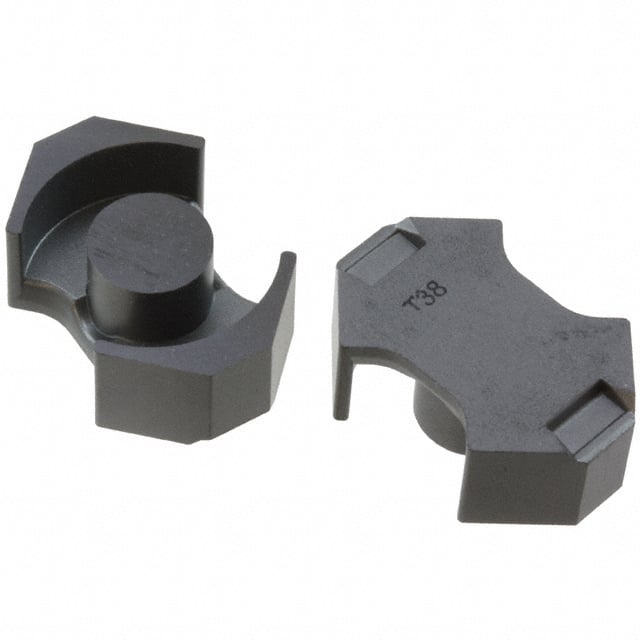

TDK B65807J0000R608
Images are for reference only
Manufacturer
Manufacturer No
B65807J0000R608
Quantity
7
Availability
In Stock
Packaging
Bulk
Description
FERRITE CORE RM PCS200
Detailed Description
Uncoated PC200 Ferrite Core RM Type 0.701" (17.90mm) Length 0.323" (8.20mm) Width Diameter 0.492" (12.50mm) Height
Datasheet
Payment
Delivery
Gap
Ungapped
Width
0.323" (8.20mm)
Finish
Uncoated
Height
0.492" (12.50mm)
Length
0.701" (17.90mm)
Series
RM6
Diameter
-
Material
PC200
Core Type
RM
Packaging
Bulk
Tolerance
-20%, +30%
Manufacturer
TDK
Supplier Device Package
RM 6
Effective Area (Ae) mm²
36.6
Effective Length (le) mm
28.6
Initial Permeability (µi)
800
Core Factor (ΣI/A) mm⁻¹
0.78
Effective Permeability (µe)
680.0
Effective Magnetic Volume (Ve) mm³
1050.0
Minimum Core Cross Section (Amin) mm²
31.0
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Width | 0.323" (8.20mm) |
| Finish | Uncoated |
| Height | 0.492" (12.50mm) |
| Length | 0.701" (17.90mm) |
| Series | RM6 |
| Diameter | - |
| Material | PC200 |
| Core Type | RM |
| Packaging | Bulk |
| Tolerance | -20%, +30% |
| Manufacturer | TDK |
| Supplier Device Package | RM 6 |
| Effective Area (Ae) mm² | 36.6 |
| Effective Length (le) mm | 28.6 |
| Initial Permeability (µi) | 800 |
| Core Factor (ΣI/A) mm⁻¹ | 0.78 |
| Effective Permeability (µe) | 680.0 |
| Effective Magnetic Volume (Ve) mm³ | 1050.0 |
| Minimum Core Cross Section (Amin) mm² | 31.0 |
