Step1: Product

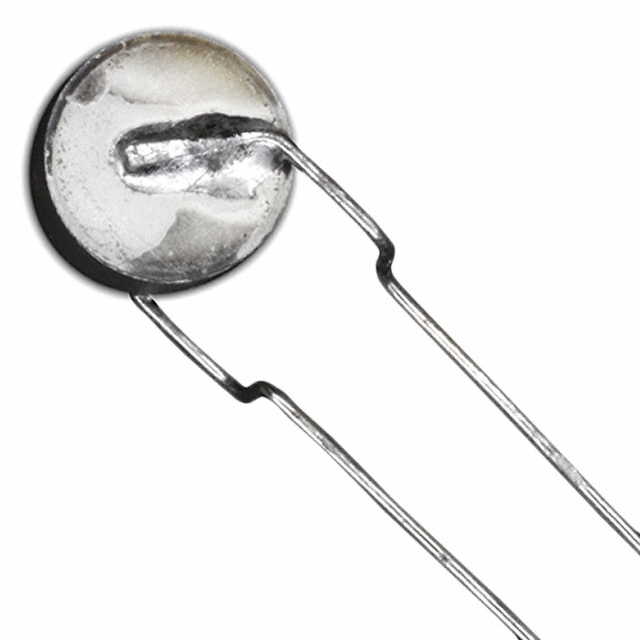

TDK B59774B0115A070
Images are for reference only
Manufacturer
Manufacturer No
B59774B0115A070
Availability
In Stock
Package
Radial, Disc
Packaging
Bulk
Description
PTC RESET FUSE 550V RADIAL DISC
Detailed Description
Ceramic PTC Resettable Fuse 550V Ih Through Hole Radial, Disc
Datasheet
Payment
Delivery
Type
Ceramic
Series
B59774
Ratings
-
Packaging
Bulk
Lead Spacing
0.197" (5.00mm)
Manufacturer
TDK
Time to Trip
2 s
Current - Max
1 A
Mounting Type
Through Hole
Voltage - Max
550V
Package / Case
Radial, Disc
Approval Agency
UL
Thickness (Max)
-
Size / Dimension
0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Current - Trip (It)
32 mA
Height - Seated (Max)
0.197" (5.00mm)
Operating Temperature
0°C ~ 60°C
Resistance - 25°C (Typ)
1.1 kOhms
| Attribute | Value |
|---|---|
| Type | Ceramic |
| Series | B59774 |
| Ratings | - |
| Packaging | Bulk |
| Lead Spacing | 0.197" (5.00mm) |
| Manufacturer | TDK |
| Time to Trip | 2 s |
| Current - Max | 1 A |
| Mounting Type | Through Hole |
| Voltage - Max | 550V |
| Package / Case | Radial, Disc |
| Approval Agency | UL |
| Thickness (Max) | - |
| Size / Dimension | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) |
| Current - Trip (It) | 32 mA |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Operating Temperature | 0°C ~ 60°C |
| Resistance - 25°C (Typ) | 1.1 kOhms |
