Step1: Product

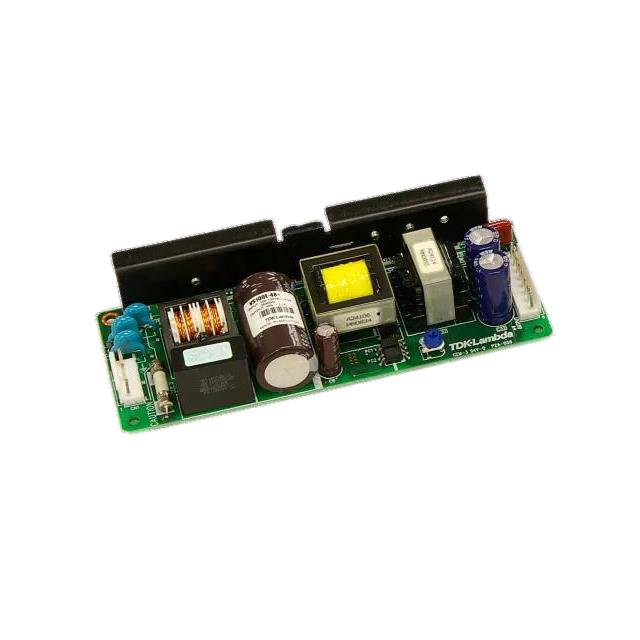

TDK-Lambda VS100E-15
Images are for reference only
Manufacturer
Manufacturer No
VS100E-15
Availability
In Stock
Packaging
Box
Description
AC/DC CONVERTER 6X15V 105W
Detailed Description
Open Frame AC DC Converters 6 Output 15V 15V 15V 15V 85 ~ 132 VAC, 110 ~ 175 VDC Input
Datasheet
Payment
Delivery
Mfr
TDK-Lambda
Type
Open Frame
Series
VS-E (150W)
Features
Adjustable Output
Packaging
Box
Efficiency
85%
Applications
ITE (Commercial)
Mounting Type
Chassis Mount
Power (Watts)
105W
Approval Agency
CE, cURus
Standard Number
60950-1; 62368-1
Voltage - Input
85 ~ 132 VAC, 110 ~ 175 VDC
Size / Dimension
6.10" L x 2.44" W x 1.14" H (155.0mm x 62.0mm x 29.0mm)
Number of Outputs
6
Current - Output 1
7 A
Current - Output 2
7 A
Current - Output 3
7 A
Current - Output 4
7 A
Current - Output 5
7 A
Current - Output 6
7 A
Voltage - Output 1
15V
Voltage - Output 2
15V
Voltage - Output 3
15V
Voltage - Output 4
15V
Voltage - Output 5
15V
Voltage - Output 6
15V
Voltage - Isolation
2 kV
Minimum Load Required
-
Operating Temperature
-10°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | TDK-Lambda |
| Type | Open Frame |
| Series | VS-E (150W) |
| Features | Adjustable Output |
| Packaging | Box |
| Efficiency | 85% |
| Applications | ITE (Commercial) |
| Mounting Type | Chassis Mount |
| Power (Watts) | 105W |
| Approval Agency | CE, cURus |
| Standard Number | 60950-1; 62368-1 |
| Voltage - Input | 85 ~ 132 VAC, 110 ~ 175 VDC |
| Size / Dimension | 6.10" L x 2.44" W x 1.14" H (155.0mm x 62.0mm x 29.0mm) |
| Number of Outputs | 6 |
| Current - Output 1 | 7 A |
| Current - Output 2 | 7 A |
| Current - Output 3 | 7 A |
| Current - Output 4 | 7 A |
| Current - Output 5 | 7 A |
| Current - Output 6 | 7 A |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | 15V |
| Voltage - Output 4 | 15V |
| Voltage - Output 5 | 15V |
| Voltage - Output 6 | 15V |
| Voltage - Isolation | 2 kV |
| Minimum Load Required | - |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
