Taoglas - Public Safety PATR.FP.17.B.5M

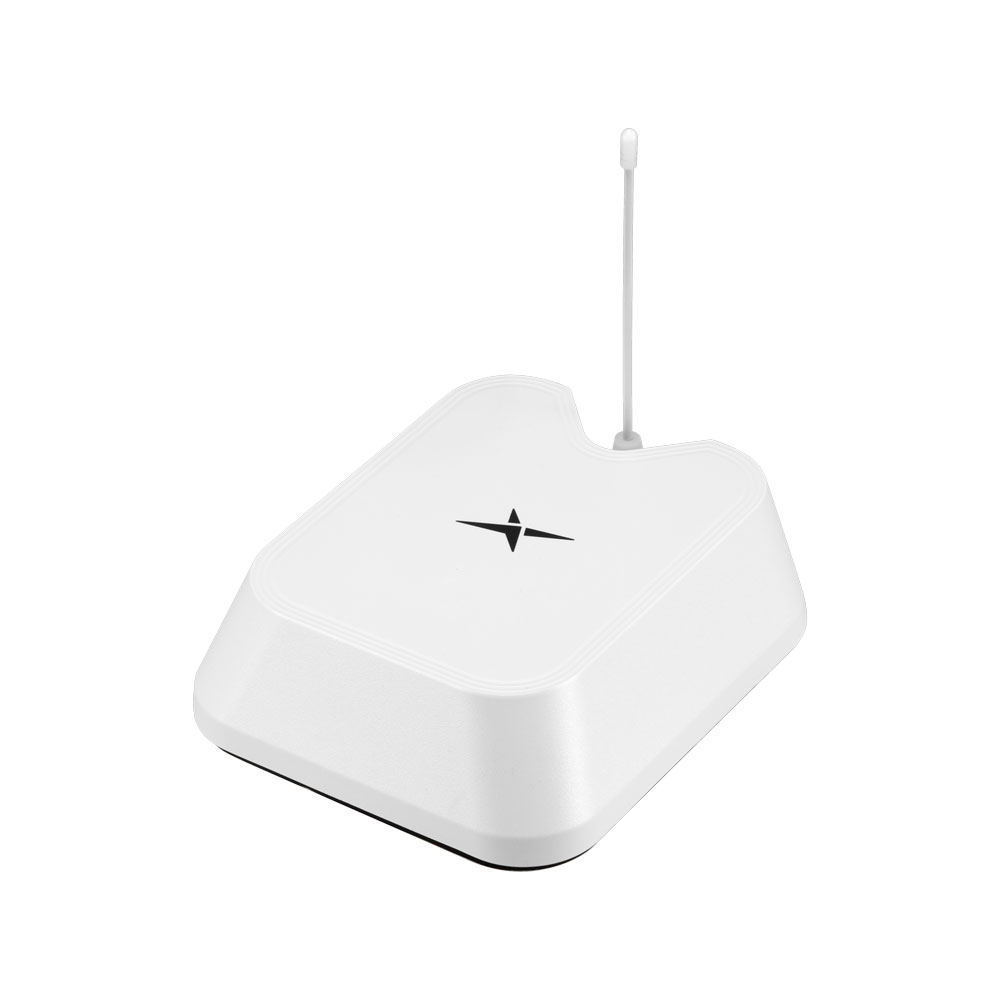

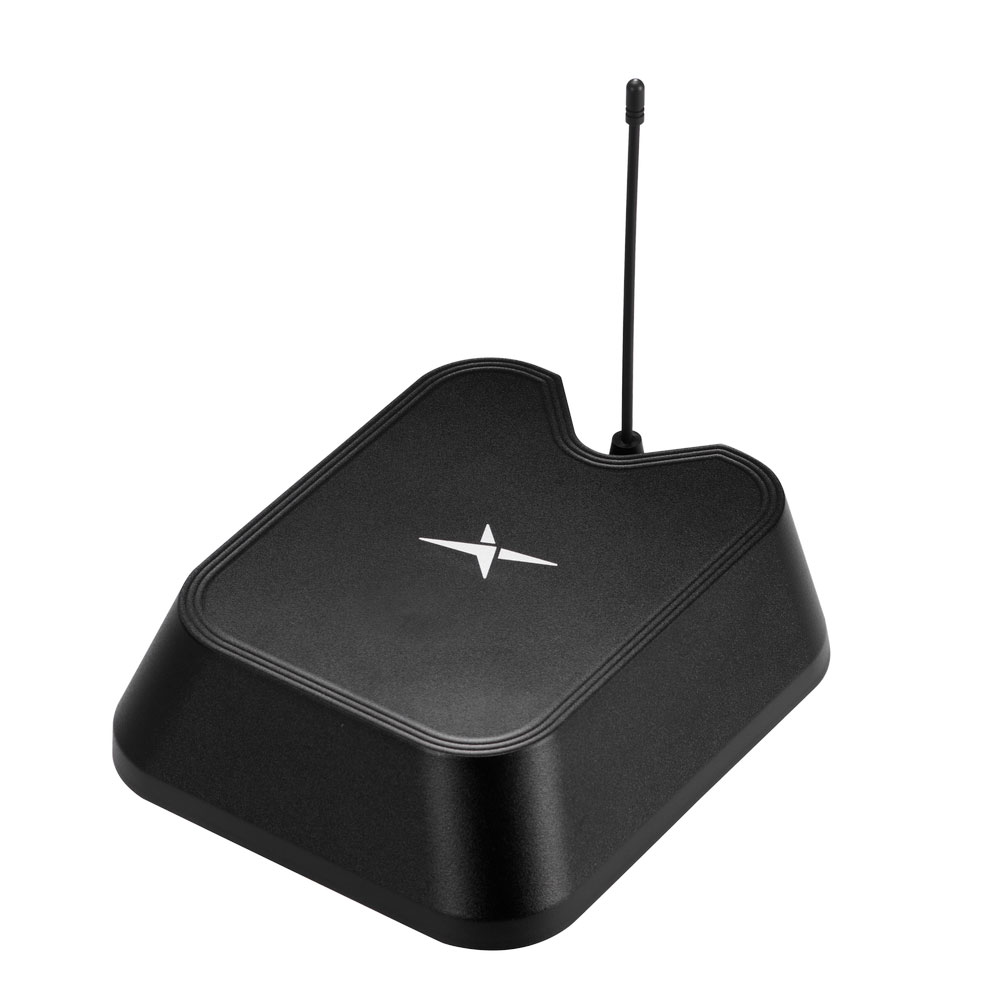

Images are for reference only
Manufacturer
Manufacturer No
PATR.FP.17.B.5M
Packaging
Bulk
Description
EXTERNAL ANTENNAS BLACK
Detailed Description
RF ANTENNA 4G, 5G, GNSS, LMR, LTE, SDARS, TETRA, UHF, VHF, Wi-Fi Module Fakra (2) Connector Mount
Datasheet
Payment
Delivery
Gain
1.55dBi, 1.93dBi, 1.84dBi, 3.56dBi, 2.24dBi, 4.28dBi, 1.62dBi, 1.97dBi, 2.78dBi, 1.46dBi, 5.59dBi, 3.08dBi, 3.08dBi, 4.06dBi, 5.97dBi, 8.5dBi, 7.39dBi, 7.5dBi, 7.95dBi, 8.37dBi
VSWR
2, 3
Grade
-
Series
Patriot
Features
Cable - 5m, LNA, Filter
Packaging
Bulk
Power - Max
10 W
Return Loss
-
Termination
Fakra (2)
Antenna Type
Module
Applications
4G, 5G, GNSS, LMR, LTE, SDARS, TETRA, UHF, VHF, Wi-Fi
Height (Max)
2.362" (60.00mm)
Manufacturer
Taoglas - Public Safety
Mounting Type
Connector Mount
Qualification
-
Frequency Group
Wide Band
Frequency Range
617MHz ~ 7.125GHz
Number of Bands
20
Ingress Protection
IP69K
RF Family/Standard
Cellular, Navigation, WiFi
Base Product Number
PATR.FP.17
Frequency (Center/Band)
657.5MHz, 761MHz, 800MHz, 892MHz, 1.176GHz, 1.472GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.603GHz, 1.955GHz, 2.332GHz, 2.338GHz, 2.338GHz, 2.45GHz, 2.495GHz, 4.15GHz, 5.5GHz, 5.537GHz, 6.525GHz
| Attribute | Value |
|---|---|
| Gain | 1.55dBi, 1.93dBi, 1.84dBi, 3.56dBi, 2.24dBi, 4.28dBi, 1.62dBi, 1.97dBi, 2.78dBi, 1.46dBi, 5.59dBi, 3.08dBi, 3.08dBi, 4.06dBi, 5.97dBi, 8.5dBi, 7.39dBi, 7.5dBi, 7.95dBi, 8.37dBi |
| VSWR | 2, 3 |
| Grade | - |
| Series | Patriot |
| Features | Cable - 5m, LNA, Filter |
| Packaging | Bulk |
| Power - Max | 10 W |
| Return Loss | - |
| Termination | Fakra (2) |
| Antenna Type | Module |
| Applications | 4G, 5G, GNSS, LMR, LTE, SDARS, TETRA, UHF, VHF, Wi-Fi |
| Height (Max) | 2.362" (60.00mm) |
| Manufacturer | Taoglas - Public Safety |
| Mounting Type | Connector Mount |
| Qualification | - |
| Frequency Group | Wide Band |
| Frequency Range | 617MHz ~ 7.125GHz |
| Number of Bands | 20 |
| Ingress Protection | IP69K |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Base Product Number | PATR.FP.17 |
| Frequency (Center/Band) | 657.5MHz, 761MHz, 800MHz, 892MHz, 1.176GHz, 1.472GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.603GHz, 1.955GHz, 2.332GHz, 2.338GHz, 2.338GHz, 2.45GHz, 2.495GHz, 4.15GHz, 5.5GHz, 5.537GHz, 6.525GHz |
