Step1: Product

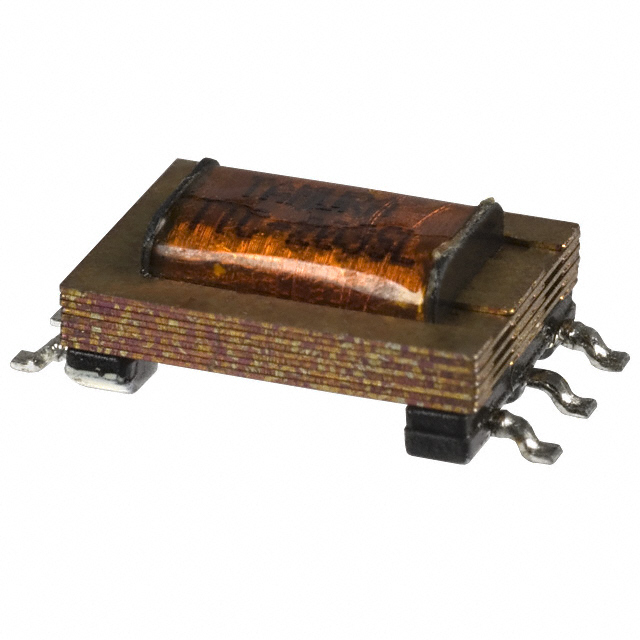

Tamura TTC-203SL
Series
TTC
Weight
-
Packaging
-
Power Level
10mW
Return Loss
25dB Min @ 300Hz ~ 3.5kHz
Manufacturer
Tamura
Mounting Type
Surface Mount
Insertion Loss
2.7dB @ 1kHz
Approval Agency
CSA-C22.2 No. 950-M89, UL1459, UL1950
Frequency Range
300Hz ~ 3.5kHz
Size / Dimension
0.330" L x 0.402" W (8.38mm x 10.20mm)
Transformer Type
Data/Voice Coupling
Termination Style
Gull Wing
Frequency Response
-0.35dB ~ 0.15dB
Voltage - Isolation
1000VRMS @ 1 Minute
Height - Seated (Max)
0.164" (4.16mm)
Operating Temperature
-
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
346
DC Resistance (DCR) - Primary
127Ohm
DC Resistance (DCR) - Secondary
150Ohm
Turns Ratio - Primary:Secondary
1:1
| Attribute | Value |
|---|---|
| Series | TTC |
| Weight | - |
| Packaging | - |
| Power Level | 10mW |
| Return Loss | 25dB Min @ 300Hz ~ 3.5kHz |
| Manufacturer | Tamura |
| Mounting Type | Surface Mount |
| Insertion Loss | 2.7dB @ 1kHz |
| Approval Agency | CSA-C22.2 No. 950-M89, UL1459, UL1950 |
| Frequency Range | 300Hz ~ 3.5kHz |
| Size / Dimension | 0.330" L x 0.402" W (8.38mm x 10.20mm) |
| Transformer Type | Data/Voice Coupling |
| Termination Style | Gull Wing |
| Frequency Response | -0.35dB ~ 0.15dB |
| Voltage - Isolation | 1000VRMS @ 1 Minute |
| Height - Seated (Max) | 0.164" (4.16mm) |
| Operating Temperature | - |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 346 |
| DC Resistance (DCR) - Primary | 127Ohm |
| DC Resistance (DCR) - Secondary | 150Ohm |
| Turns Ratio - Primary:Secondary | 1:1 |
