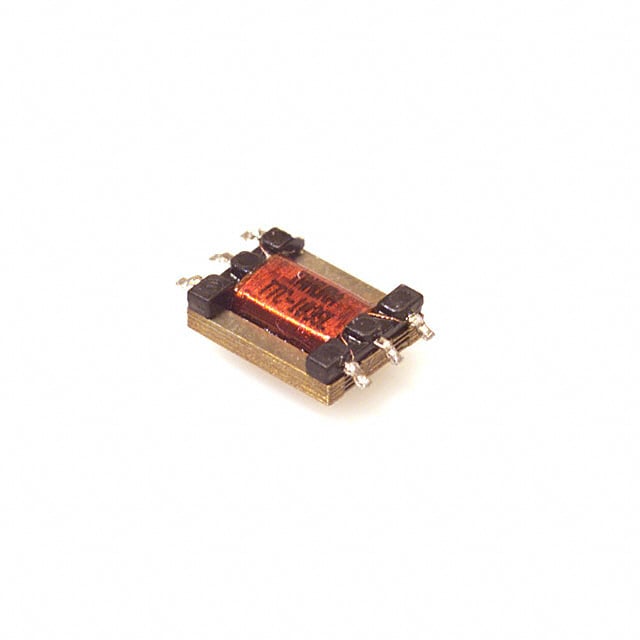

Tamura TTC-103SL

Images are for reference only

Manufacturer

Tamura

Manufacturer No

TTC-103SL

Packaging

Bulk

Description

AUDIO XFMR 600 / 346 SMD

Detailed Description

600 Impedance Primary Ohms 346 Impedance Secondary Ohms 1:1 Audio Transformer 300Hz ~ 3.5kHz Surface Mount

Payment

Delivery

Series

TTC

Weight

-

Packaging

Bulk

Power Level

10mW

Return Loss

25dB Min @ 300Hz ~ 3.5kHz

Manufacturer

Tamura

Mounting Type

Surface Mount

Insertion Loss

2.7dB @ 1kHz

Approval Agency

CSA-C22.2 No. 950-M89, UL1459, UL1950

Frequency Range

300Hz ~ 3.5kHz

Size / Dimension

0.330" L x 0.402" W (8.38mm x 10.20mm)

Transformer Type

Data/Voice Coupling

Termination Style

Gull Wing

Frequency Response

-0.35dB ~ 0.15dB

Voltage - Isolation

1000VRMS @ 1 Minute

Height - Seated (Max)

0.164" (4.16mm)

Operating Temperature

-

Impedance - Primary (Ohms)

600

Impedance - Secondary (Ohms)

346

DC Resistance (DCR) - Primary

127Ohm

DC Resistance (DCR) - Secondary

150Ohm

Turns Ratio - Primary:Secondary

1:1

Attribute	Value
Series	TTC
Weight	-
Packaging	Bulk
Power Level	10mW
Return Loss	25dB Min @ 300Hz ~ 3.5kHz
Manufacturer	Tamura
Mounting Type	Surface Mount
Insertion Loss	2.7dB @ 1kHz
Approval Agency	CSA-C22.2 No. 950-M89, UL1459, UL1950
Frequency Range	300Hz ~ 3.5kHz
Size / Dimension	0.330" L x 0.402" W (8.38mm x 10.20mm)
Transformer Type	Data/Voice Coupling
Termination Style	Gull Wing
Frequency Response	-0.35dB ~ 0.15dB
Voltage - Isolation	1000VRMS @ 1 Minute
Height - Seated (Max)	0.164" (4.16mm)
Operating Temperature	-
Impedance - Primary (Ohms)	600
Impedance - Secondary (Ohms)	346
DC Resistance (DCR) - Primary	127Ohm
DC Resistance (DCR) - Secondary	150Ohm
Turns Ratio - Primary:Secondary	1:1
