Step1: Product

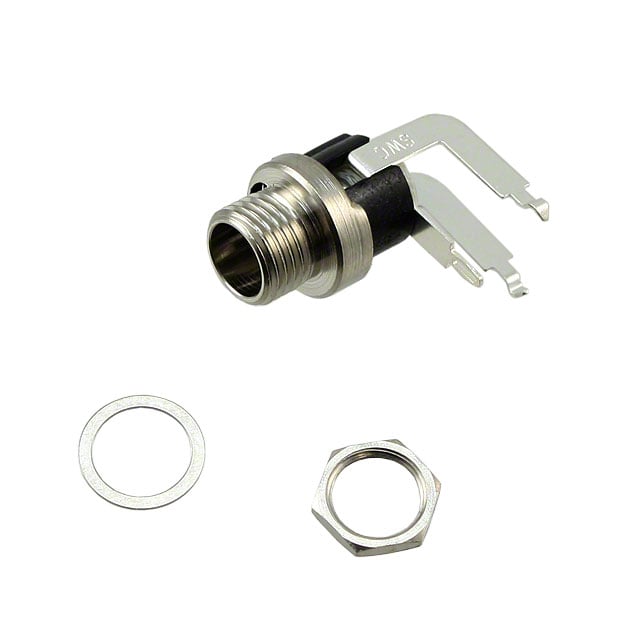

Switchcraft Inc. 712RA
Images are for reference only
Manufacturer
Manufacturer No
712RA
Availability
In Stock
Packaging
Bulk
Description
CONN PWR JACK 2.5X5.5MM SOLDER
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet
Payment
Delivery
Gender
Male
Series
-
Features
Mounting Hardware, Thread Lock
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver, Black
Termination
Solder
Thread Size
5/16"-32
Manufacturer
Switchcraft Inc.
Body Material
Copper Alloy
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID), 0.217" (5.50mm OD)
Voltage - Rated
48V
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Insulation Color
-
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
-
Internal Switch(s)
Single Switch, Normally Closed
Mating Length/Depth
-
Current Rating (Amps)
5 A
Operating Temperature
-
Contact Material - Plating
Silver
Material Flammability Rating
-
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | - |
| Features | Mounting Hardware, Thread Lock |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Termination | Solder |
| Thread Size | 5/16"-32 |
| Manufacturer | Switchcraft Inc. |
| Body Material | Copper Alloy |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
| Voltage - Rated | 48V |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Insulation Color | - |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | - |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mating Length/Depth | - |
| Current Rating (Amps) | 5 A |
| Operating Temperature | - |
| Contact Material - Plating | Silver |
| Material Flammability Rating | - |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
