Step1: Product

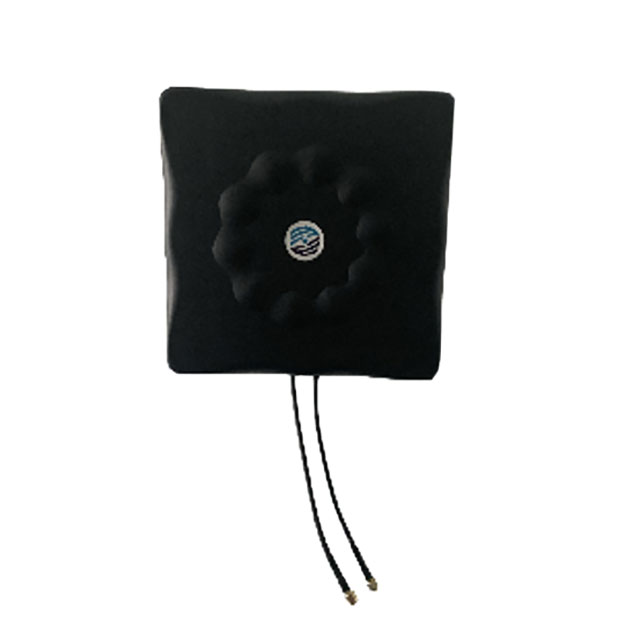

Suzhou Maswell Communication Technology Co. Ltd AN_MASTER_001-2
Images are for reference only
Manufacturer
Manufacturer No
AN_MASTER_001-2
Availability
In Stock
Packaging
Box
Description
MASWELL 5G/4G/WIFI MIMO PANEL AN
Detailed Description
RF ANTENNA 4G, 5G, LTE Panel SMA Screw Mount
Datasheet
Payment
Delivery
Gain
6dBi
VSWR
2
Grade
-
Series
-
Features
Cable - 1m
Packaging
Box
Return Loss
-
Termination
SMA
Antenna Type
Panel
Applications
4G, 5G, LTE
Height (Max)
1.772" (45.00mm)
Manufacturer
Suzhou Maswell Communication Technology Co. Ltd
Mounting Type
Screw Mount
Qualification
-
Frequency Group
Wide Band
Frequency Range
600MHz ~ 6GHz
Number of Bands
1
Ingress Protection
IP67
RF Family/Standard
Cellular
Frequency (Center/Band)
3.3GHz
| Attribute | Value |
|---|---|
| Gain | 6dBi |
| VSWR | 2 |
| Grade | - |
| Series | - |
| Features | Cable - 1m |
| Packaging | Box |
| Return Loss | - |
| Termination | SMA |
| Antenna Type | Panel |
| Applications | 4G, 5G, LTE |
| Height (Max) | 1.772" (45.00mm) |
| Manufacturer | Suzhou Maswell Communication Technology Co. Ltd |
| Mounting Type | Screw Mount |
| Qualification | - |
| Frequency Group | Wide Band |
| Frequency Range | 600MHz ~ 6GHz |
| Number of Bands | 1 |
| Ingress Protection | IP67 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 3.3GHz |
